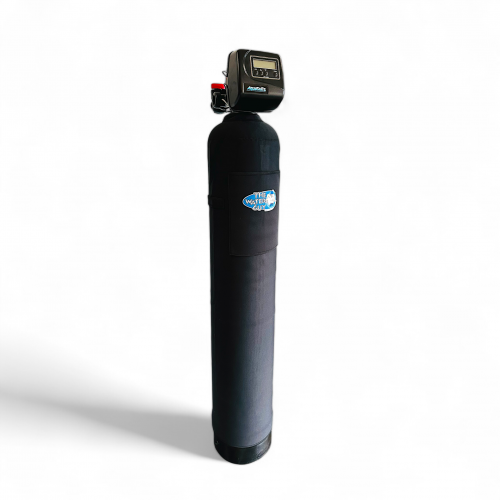

AquaSulis Birm AOM, Iron & Manganese Whole House Filter System

Birm AOM Media Advantages

Birm is an effective chemical free way to treat water with ferrous iron, ferric iron & manganese. It is a light weight iron media needing less water to clean and can work in a wide range of pH conditions. The Air over Media component of the system supercharges birms abilty to oxidize metals, and trap them.

Birm Features and Benefits

• Chemical Free
• Light Weight Media
• Iron, Manganese Removal
• Wide pH Range 6.8* to 9.0*
• Low Maintenance

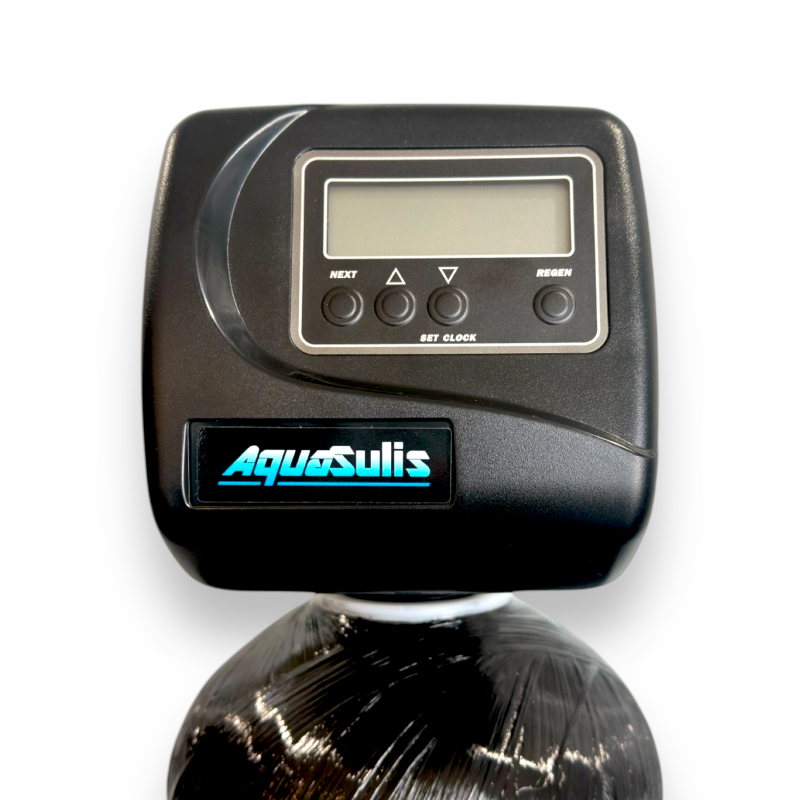

Clack WS1 Control Valve Features and Benefits

• Large Easy to Read Digital Display
• Battery Back-Up for Short Power Outages
• Naturally Air Aspirated
• High Flow 1" Valve Design
• Down Flow Design
• Fully Customizable Programming
• Low Maintenance
• EE Electronic Board

Is this system & method right for you?

There are a few things you need to consider before selecting this method of removal.

Is the pH of your water from 6.8 to 9.0? If the pH of your water is lower than 6.8, or higher than 9.0 its best to write or call to discuss a few ways of improving your removal conditions. Don't know your pH... you need a water test before ordering a system!

Recommended Removal Limits: Recommended Total Iron limit is 3ppm, Manganese 1.0ppm, H2S, hydrogen sulphide must be removed before the brim filter, visit the Birm spec sheet to learn more about its removal capabilities.

What is the intended maximum flow rate in your home? This is important for two reasons, one we need to match the maximum flow rate of your home with the maximum service flow rate of your system, and two, the system requires a certain amount of water to clean its media bed properly... a single cubic foot of Birm media has a maximum or peak flow rate of 5gpm (gallons per minute). So a 0.75cuft system is a 4gpm system, 1.0cuft = 5gpm, 1.5cuft = 7.5gpm, 2.0cuft = 10gpm. Better removal will occur at reduced rates. For example, an ideal service flow rate for maximum removal would be, 0.75cuft = 3gpm, 1.0cuft = 4gpm, 1.5cuft = 5gpm, 2.0cuft = 7gpm.

Don't know your flow rate... Fixture counts and the number of people is a practical way when you have the endless water supply, well-pumping systems often are the limiting factor so a bucket test using a hose from your manifold or tank tee will work great.

Backwashing requirements are important, water temperature is also important. Your water supply will need to be able to meet the backwashing requirements of the specific model. Cold water reduces the minimum flow rate needed to clean the Birm media bed, warmer water increases the minimum flow rate needed.

Back Washing Rate Flow Chart

Great Information Links

• Birm Media Spec Sheet
• Features Brochure
• Installation Manual

What's in the Box

• One Fully Assembled System*
• Water Specialist Advanced Metered Control Valve
• Built-In By-Pass Valve
• Your Choice of many Plumbing Connections
• 3/4" Drain Connection
• Clack or Pentair Structural Mineral Tank - Black
• Birm Media by Clack
• Gravel Under Bedding
• Riser Rod with Lower Basket
• Full Sized Printed Manual
• * If you live in an area that doesn't have an adequate delivery for a fully assembled system, we can often ship a system in a few easy to assemble pieces.

Warranty

• 5 years on the complete control valve
• 10 years on the mineral tank
• Warrantied for manufactures defects

Support

• The Water Guy Provides
• Free Phone & Email Support
• System Sizing
• Installation Help
• Programing Assistance

Available Sizes

• 0.75 cuft Capacity, 9" Diameter by 48" Tall Mineral Tank
• 1.0 cuft Capacity, 10" Diameter by 54" Tall Mineral Tank
• 1.5 cuft Capacity, 12" Diameter by 52" Tall Mineral Tank
• 2.0 cuft Capacity, 13" Diameter by 54" Tall Mineral Tank

Smaller & larger systems are available, Alternating and Parallel, Commercial systems, please inquire with your specific needs
