AquaSulis by Clack WS1 CS Series Water Softener and Conditioner

Clack WS1 CS Series Water Softener and Conditioner

Clack has made some of the biggest advancements in water softening in the last 20 years in terms of rugged reliable equiptment. These made in North America systems are dependable, efficent and longlasting.

Features and Benefits

• Great Salt Efficiency
• Metered System
• High Hardness Removal
• Iron & Manganese Removal
• Large Easy to Read Display
• Battery Back-Up for Power Outages
• Large Easy to Read Display
• Rugged Proven Design
• High Flow Valve Design
• Simple Programming
• Low Maintenance
• *Free Shipping

Resource Information Links

• Full Clack WS1 CS Manual
• Start Up Proceedure

What's in the Box

• One Fully Assembled System*

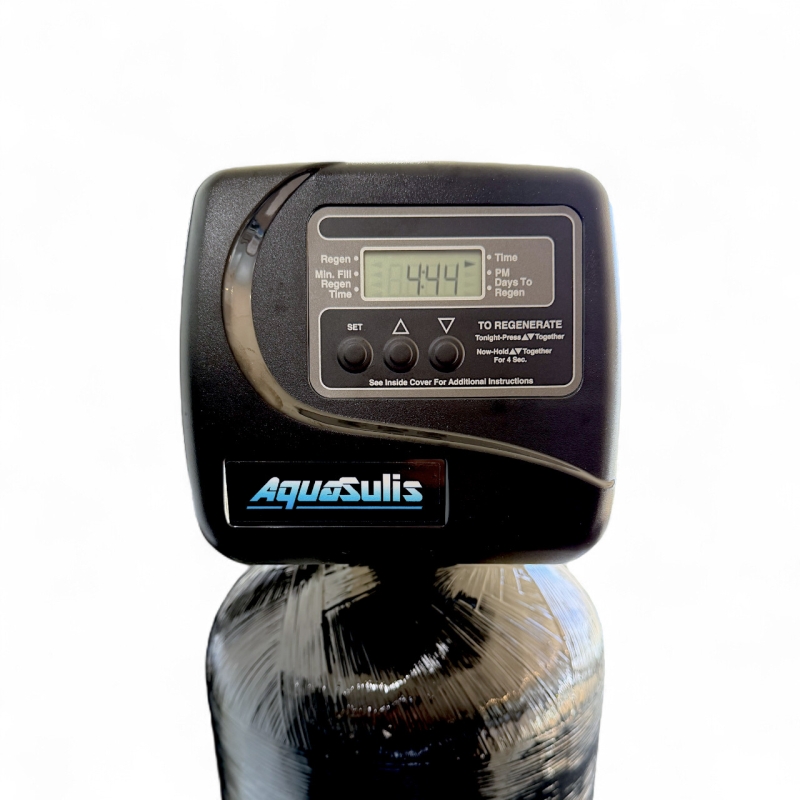

• Clack WS1 CS Series Metered Control Valve
• Matching Dual By-Pass Valve
• Your Choice of 1" or 3/4" Piping Connectors
• Pentair Structural Poly Glass Mineral Tank - Black
• High Efficiency 8% or 10% Crosslinked Cation Resin - *10% is for chlorinated water supplies
• Riser Rod with Upper and Lower Baskets
• Full Sized Printed Manual

Warranty

• 5 years on the complete control valve
• 10 years on the mineral tank
• Warrantied for manufactures defects

Support

• Free Phone & Email Support
• System Sizing
• Installation Help
• Programing Assistance

Available Sizes

• 30K - 1.0 cuft   Capacity,   9" Diameter by 48" Tall Mineral Tank
• 40K - 1.25 cuft Capacity, 10" Diameter by 47" Tall Mineral Tank
• 45K - 1.5 cuft   Capacity, 10" Diameter by 54" Tall Mineral Tank
• 60K - 2.0 cuft   Capacity, 12" Diameter by 52" Tall Mineral Tank
• The valve head adds another 7" in height to each tank
• Smaller & larger systems are available, twin alternating systems and commercial ones too, please inquire with your specific needs

Softening Resin

We use 8% Cation resin simply because its the most efficient media for normal water softening requirements including well water. If you are on a chlorinated, municipal or city water supply select the 10% Cation Resin as it is more chemical resistant than 8%.

Please direct any questions or water reports you have to us so we can help you choose the right size and system for your home & water.

*Shipping

Homes with two zeros in thier postal code may require an additional shipping charge or we can sometimes break down the system into a few boxes and ship it via courier instead of ltl on a truck. Call or write to find out more if you live a little out of the way.

The right system & the right size:

A resin-based exchange system that uses sodium is still the most effective way to remove hardness (calcium & magnesium) from your water supply. They can also remove  ferrous iron and colloidal manganese.

There are a few things to consider when selecting your systems size.

Family size (how many people are in your home), home size (number of bathrooms & kitchens), specialty water use appliances like side spraying showers, peak service flow rate, and water chemistry are all important factors in sizing your new home softening system.

What is the intended maximum flow rate in your home? Why is this important... a single cubic foot of resin media has a recomended maximum flow rate of 5gpm (gallons per minute). So a 1cuft system is a 5gpm system, 1.5cuft = 7.5gpm, 2.0cuft = 10gpm

Don't know your flow rate... Fixture counts and the number of people is a practical way when you have the endless water supply, well-pumping systems often are the limiting factor and if youre not sure a simple bucket test using a short garden hose from your tank tee/manifold, outside tap or yard hydrant will work great.

If you have ferric iron, high iron, high manganese, and or H2S Hydrogen Sulphide, contact us with the details and we can find the right variation or supplemental system for you.

Do you already have a water test or know your water content? Send it along to us and we can size the system with you.

Additional Options:

Clack has made some really great additional options for this valve, including, a verticle by-pass adapter which allows you to shorten the installation room needed and position the by-pass valve either pointing up or down. The is also a mixing or blending valve available for those that need to blend some hardness back into the water supply.
