AquaSulis CS Series Tannin Filter

AquaSulis CS Series Tannin, Color & Organic Carbon System

The AquaSulis Tannin, Color and Organic Carbons filtration system is self cleaning fully automatic filter system. They utilize the highest grade of anion exchange resin to remove the colour from your water caused by tannins, lignans, and organic carbons. Clack has made some of the biggest advancements in water softening in the last 20 years in terms of rugged reliable equiptment. These made in North America systems are dependable, efficent and longlasting.

Features and Benefits

• Metered System
• High Hardness Removal
• Large Easy to Read Display
• Battery Back-Up for Power Outages
• Rugged Proven Design
• High Flow Valve Design
• Downflow System Design
• Simple Flexible Programming
• Low Maintenance
• *Free Shipping

Resource Information Links

• Clack WS1 CS Manual
• Start Up Proceedure

What's in the Box

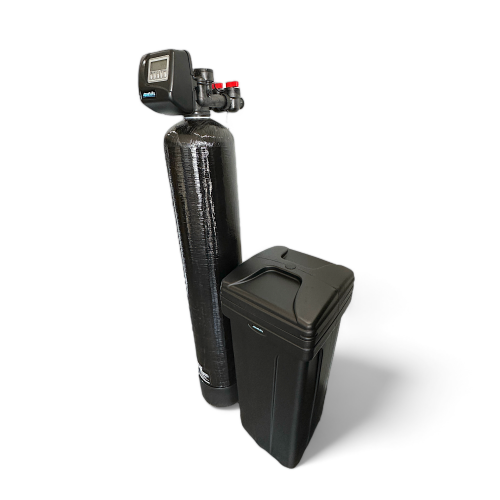

• One Fully Assembled System*

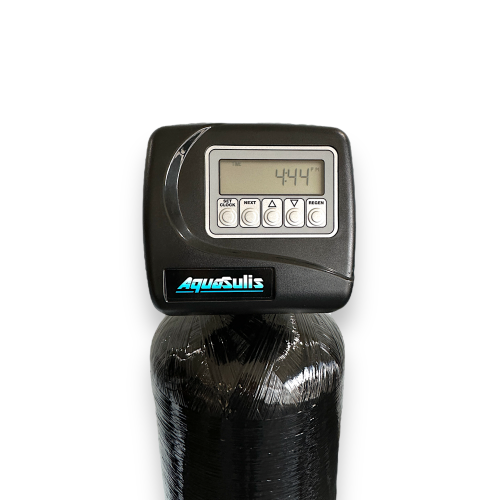

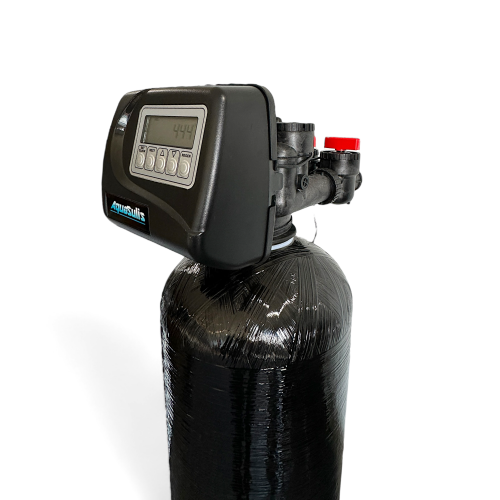

• Clack WS1 CS Series Metered Control Valve
• Matching Dual By-Pass Valve
• Your Choice of many plumbing Connectors
• Clack or Pentair Structural Poly Glass Mineral Tank - Black
• High Efficiency Anion Tannin/Color Resin
• Riser Rod with Upper and Lower Baskets
• Full Sized Printed Manual

Warranty

• 5 years on the complete control valve
• 10 years on the mineral tank
• Warrantied for manufactures defects

Support

• Free Phone & Email Support
• System Sizing
• Installation Help
• Programing Assistance

Available Sizes

• 1.0 cuft   Capacity,  9" Diameter by 48" Tall Mineral Tank
• 1.25 cuft Capacity, 10" Diameter by 47" Tall Mineral Tank
• 1.5 cuft   Capacity, 10" Diameter by 54" Tall Mineral Tank
• 2.0 cuft   Capacity, 12" Diameter by 52" Tall Mineral Tank
• 2.5 cuft   Capacity, 13" Diameter by 54" Tall Mineral Tank
• The valve head adds another 7" in height to each tank
• Smaller & larger systems are available, twin alternating systems parallel and commercial ones too, please inquire with your specific needs

Anion Resin

Anion exchange resin work in the same way a standard water softener works. Water Softener Salt is used to regenerate or recharge the anion resin bed. the salt setting for this type of resin is 1.25% to 1.5% more salt per cuft of resin to regenerate. Anion resin also removes other anions from the water and this should be factored in to the overall sizing of the system.

Please direct any questions or water reports you have to us so we can help you choose the right size and system for your home & water.

*Shipping

Homes with two zeros in thier postal code may require an additional shipping charge or we can sometimes break down the system into a few boxes and ship it via courier instead of ltl on a truck. Call or write to find out more if you live a little out of the way.

The right system & the right size:

An Anion resin-based exchange system that uses salt for it's regeneration is still the most effective way to remove Tannins, Color, Organic Carbons from your water supply.

There are a few things to consider when selecting your systems size.

Family size (how many people are in your home), home size (number of bathrooms & kitchens), specialty water use appliances like side spraying showers, peak service flow rate, and water chemistry are all important factors in sizing your new home softening system.

What is the intended maximum flow rate in your home? Why is this important... a single cubic foot of resin media has a recomended maximum flow rate of 5gpm (gallons per minute). So a 1cuft system is a 5gpm system, 1.5cuft = 7.5gpm, 2.0cuft = 10gpm

Don't know your flow rate... Fixture counts and the number of people is a practical way when you have the endless water supply, well-pumping systems often are the limiting factor and if youre not sure a simple bucket test using a short garden hose from your tank tee/manifold, outside tap or yard hydrant will work great.

If you have ferric iron, high iron, high manganese, and or H2S Hydrogen Sulphide, contact us with the details and we can find the right pre-filtration system for you.

Do you already have a water test or know your water content? Send it along to us and we can size the system with you.

Additional Options/Notes:

Clack has made some really great additional options for this valve, including, a verticle by-pass adapter which allows you to shorten the installation room needed and position the by-pass valve either pointing up or down. The is also a mixing or blending valve available for those that need to blend some hardness back into the water supply.
