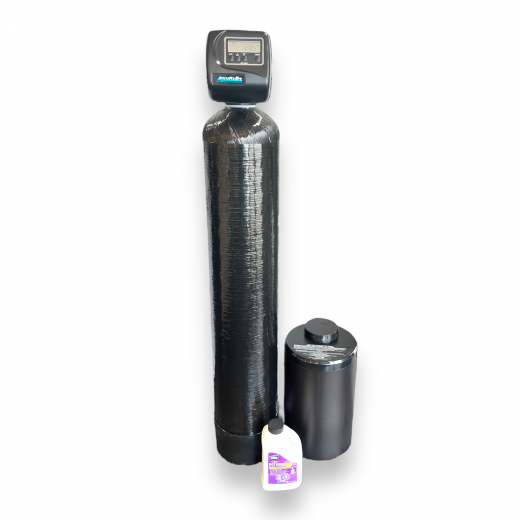

AquaSulis GreenSand Plus, Iron, Manganese & H2S, Whole House Filter System

GreenSand Plus Advantages

GreenSand Plus is a longtime tried and true method of treating water with Ferrous iron, Ferric Iron, Manganese, Hydrogen Sulfide and converting Arsenic. It is also a good particulate filter, and can work in a wide range of pH conditions. This media is heavy and requires proper amounts of water for back-washing.

GreenSand Plus must be regenerated with either Chlorine or Potassium Permanganate, in most non-municipal applications Pot-Perm is used.

Features and Benefits

• Works in a wide pH Range
• Iron, Manganese & H2S Removal
• Arsenic Treatment*
• Wide pH Range 6.2* to 8.5
• Sediment, Particulte Removal

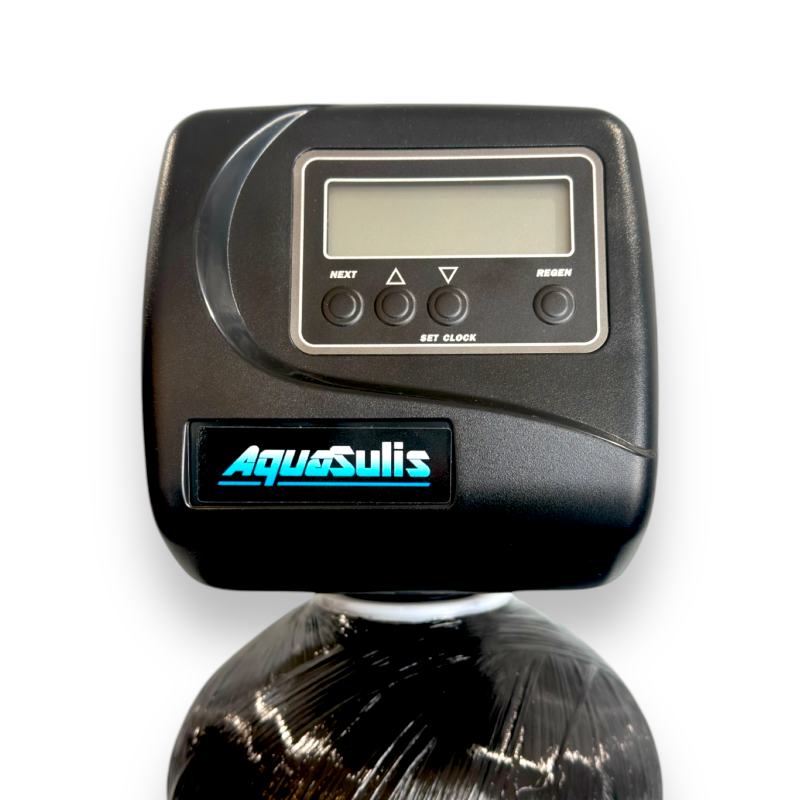

Clack WS1 EE Metered Control Valve Features and Benefits

• Large Easy to Read Digital Display
• Battery Back-Up for Short Power Outages
• Rugged Reliable Design
• High Flow 1" Metered Valve
• Simple Flexible Programming
• Advanced Valve History

Is this system & method right for you?

There are a few things you need to consider before selecting this method of removal.

Is the pH of your water from 6.2 to 8.5? If the pH of your water is lower than 6.2, or higher than 9.0 its best to write or call to discuss a few ways of improving your removal conditions. Don't know your pH... you need a water test before ordering a system!

Recomended Removal Limits: Total Iron limit is 15 mg/l, Manganese 3.0 mg/l, Hydrogen Sulphide (H2S) 5.0 ppm, visit the Katalox spec sheet to see more of its removal capabilities.

What is the intended maximum flow rate in your home? This is important for two reasons, one we need to match the maximum flow rate of your home with the maximum service flow rate of your system, and two, the system requires a certain amount of water to clean its media bed properly.

Don't know your flow rate... Fixture counts and the number of people is a practical way when you have the endless water supply, well-pumping systems often are the limiting factor so a bucket test using a hose from your manifold or tank tee will work great.

Backwashing requirements are important, water temperature is also important. Your water supply will need to be able to meet the backwashing requirments of the specific model. Cold water reduces the minimum flow rate needed to clean the media bed, warmer water increases the minimum flow rate needed.

Flow Rate Chart

You can learn more about GreenSand Plus here

Radium and Arsenic Removal Using GreensandPlus

The GreensandPlus process has been found to be successful in removing radium and arsenic from well water. This occurs via adsorption onto the manganese and/or iron precipitates that are formed. For radium removal, soluble manganese must be present in or added to the raw water for removal to occur. Arsenic removal requires iron to be present in or added to the raw water to accomplish removal. Testing is recommended in either case.

Information Links

• Features Brochure
• Installation Manual

What's in the Box

• One Fully Assembled System*
• Water Specialist Advanced Metered Control Valve
• Built-In By-Pass Valve
• Your Choice of many Plumbing Connections
• 3/4" Drain Connection
• Poly Glass Mineral Tank - Black
• Clack Pot-Perm Feeder Tank
• 5lbs of Potassium Permanganate
• Premium GreenSand Plus+ Media
• Riser Rod with Lower Basket
• Full Sized Printed Manual

* If you live in an area that doesn't have an adequate delivery for a fully assembled system, we can often ship a system in a few easy to assemble pieces.
* Delivery Addresses with two zeros in the postal code and other remote locations, extra deivery charges may apply, call or write so we can find the best way to get this system delivered to you.

Warranty

• 5 years on the complete control valve
• 10 years on the mineral tank
• 3 Years on the Pot-Perm Tank
• Warrantied for manufactures defects

Support

• The Water Guy Provides
• Free Phone & Email Support
• System Sizing
• Installation Help
• Programing Assistance
