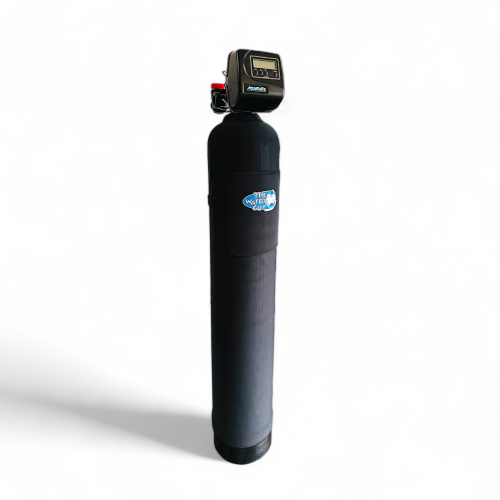

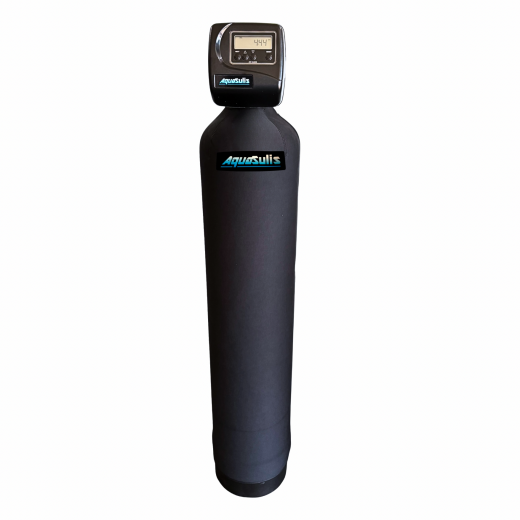

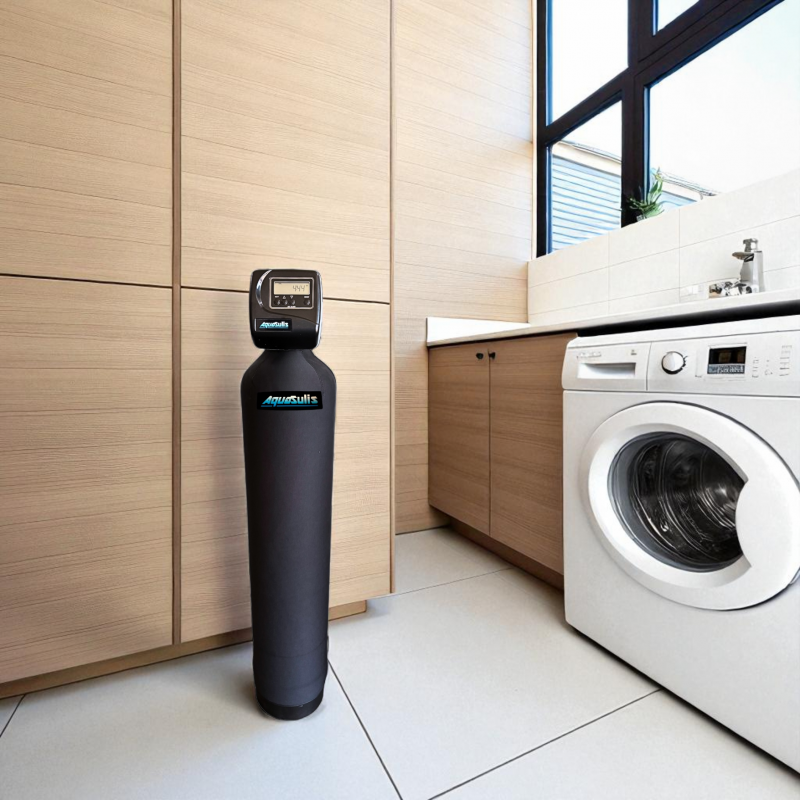

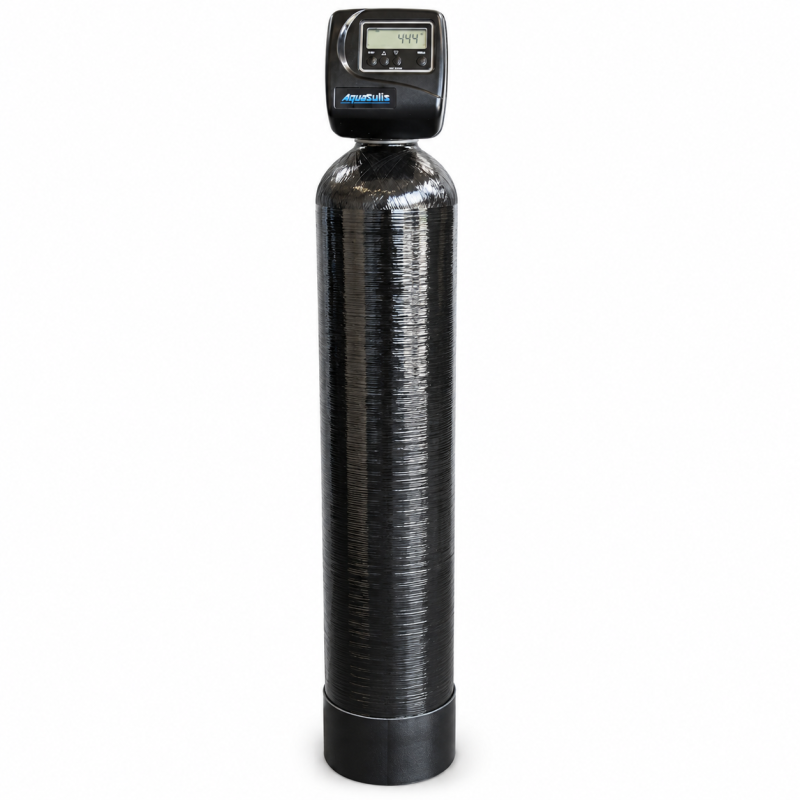

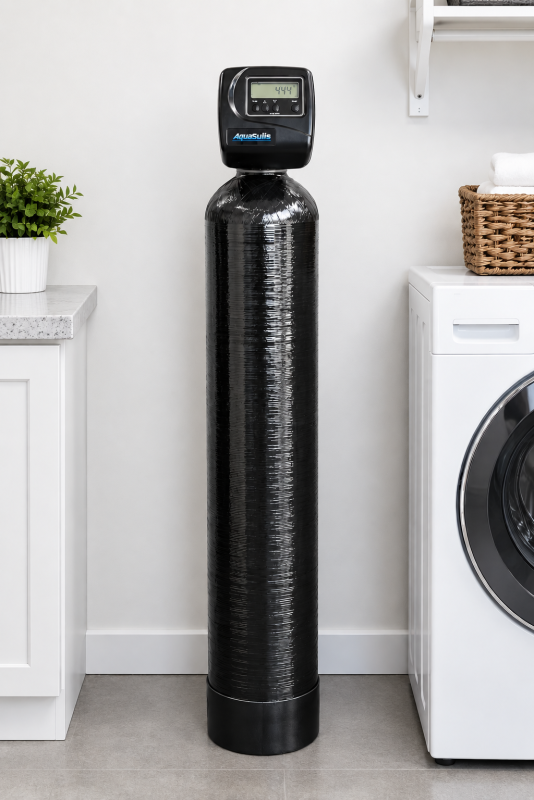

AquaSulis H2S AOM Whole House Filter System

Air over Media & Centaur Catalytic Carbon Advantages

This is the mosty effective chemical free way to treat water with hydrogen suphide / h2s. Say good bye to sulphurous odors, rotten egg smells, remove the grey film and high pH.

Features and Benefits

• Chemical Free Whole House
• Ultra Light Weight Media
• Hydrogen Sulphide Removal
• Also removes Chloramine & Chlorine
• Low Maintenance

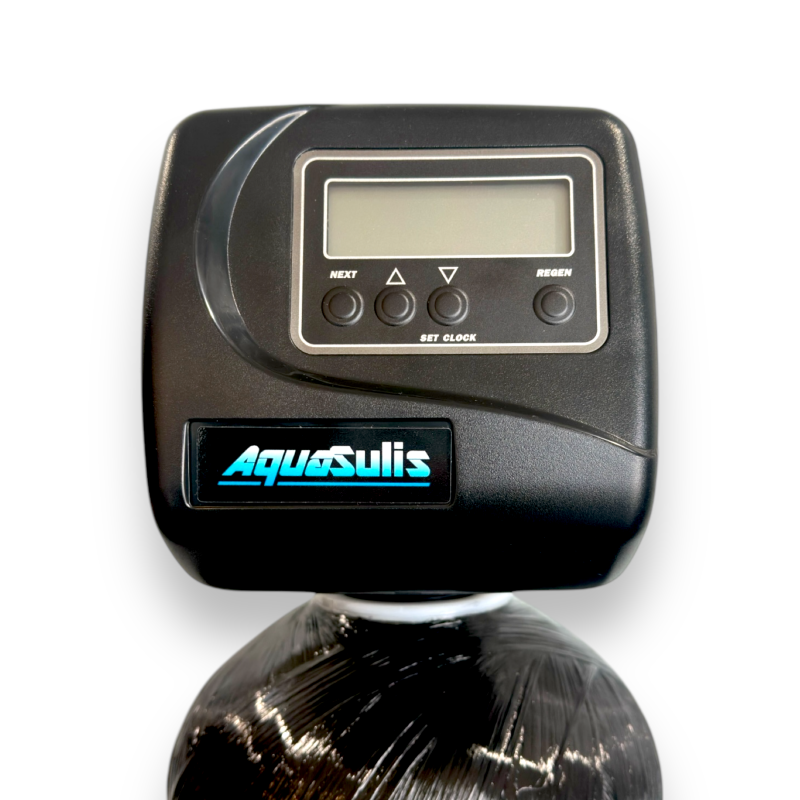

Clack WS1 EE Control Valve Features and Benefits

• Large Easy to Read Digital Display
• Battery Back-Up for Short Power Outages
• Naturally Air Aspirated
• High Flow 1" Valve Design
• Down Flow Design
• Simple Flexible Programming
• Low Maintenance

Is this system & method right for you?

There are a few things you need to consider before selecting this method of removal.

What is the intended maximum flow rate in your home? This is important for two reasons, one we need to match the maximum flow rate of your home with the maximum service flow rate of your system, and two, the system requires a certain amount of water to clean its media bed properly.

Don't know your flow rate... Fixture counts and the number of people is a practical way when you have the endless water supply, well-pumping systems often are the limiting factor so a bucket test using a hose from your manifold or tank tee will work great. Ask us if youre not sure.

Backwashing requirements are important, water temperature is also important. Your water supply will need to be able to meet the backwashing requirments of the specific model. Cold water reduces the minimum flow rate needed to clean the media bed, warmer water increases the minimum flow rate needed.

Service Flow Rates and Back Washing Flow Rate Chart

Please direct any questions you have to us so we can help you choose the right size and system for your water.

Great Information Links

• Features Brochure
• Installation Manual
• Centaur Carbon Spec Sheet

What's in the Box

• One Fully Assembled System*
• Water Specialist Advanced Metered Control Valve
• Built-In By-Pass Valve
• Your Choice of 1" or 3/4" Piping Connections
• 3/4" Drain Connection
• Poly Glass Mineral Tank - Black
• Calgon's Centaur Catayltic Carbon
• Gravel Under Bedding
• Riser Rod with Lower Basket
• Full Sized Printed Manual

* If you live in an area that doesn't have an adequate delivery for a fully assembled system, we can often ship a system in a few easy to assemble pieces.

Warranty

• 5 years on the complete control valve
• 10 years on the mineral tank
• Warrantied for manufactures defects

Support

• The Water Guy Provides
• Free Phone & Email Support
• System Sizing
• Installation Help
• Programing Assistance

Available Sizes

• 1.0 cuft Capacity, 9" Diameter by 48" Tall Mineral Tank
• 1.5 cuft Capacity, 10" Diameter by 54" Tall Mineral Tank
• 2.0 cuft Capacity, 12" Diameter by 52" Tall Mineral Tank
• 2.5 cuft Capacity, 13" Diameter by 54" Tall Mineral Tank
• 3.0 cuft Capacity, 14" Diameter by 65" Tall Mineral Tank
• 4.0 cuft Capacity, 16" Diameter by 65" Tall Mineral Tank

Smaller & larger systems are available, twin parallel systems and commercial ones too, please inquire with your specific needs
