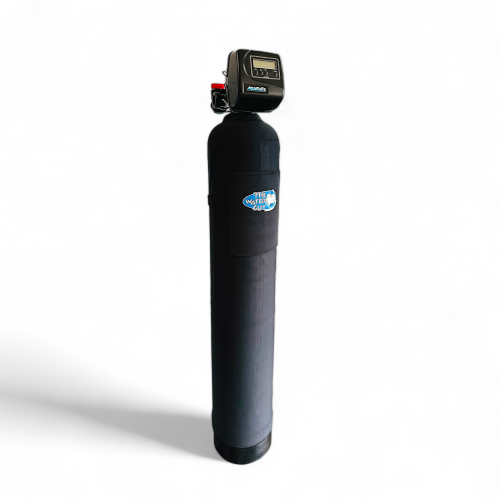

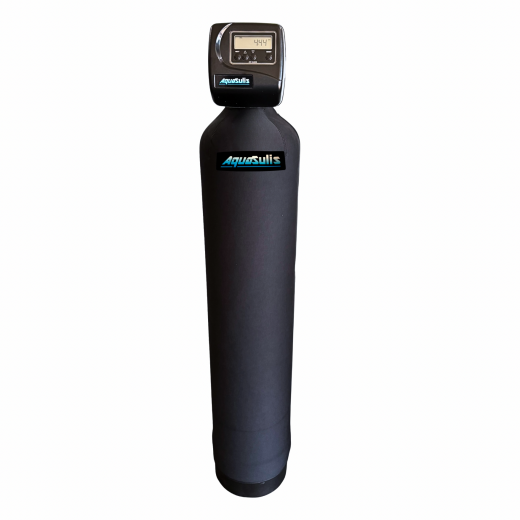

AquaSulis Katalox Lite AOM, Iron, Manganese & H2S, Whole House Filter System

Katalox Lite Advantages

Katalox is a very effective chemical free way to treat water with ferrous iron, ferric iron, manganese and hydrogen sulfide. It is also a good particulate filter, and can work in a wide range of pH conditions. This light weight media is similar to birm and requires less water to back wash than other oxide medias.

Katalox Features and Benefits

• Chemical Free
• Light Weight Media
• Iron, Manganese & H2S Removal
• Wide pH Range 5.8* to 10.5*
• Sediment, Particulte Removal
• Low Maintenance

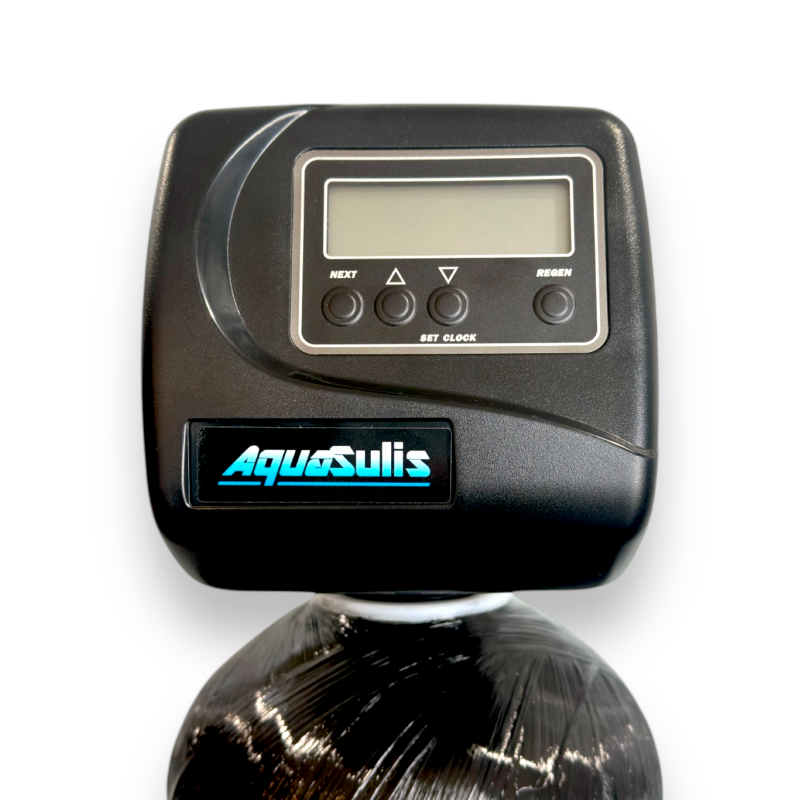

Clack WS1 EE Control Valve Features and Benefits

• Large Easy to Read Digital Display
• Battery Back-Up for Short Power Outages
• Air Aspirated
• High Flow 1" Valve Design
• Simple Flexible Programming
• Low Maintenance

Is this system & method right for you?

There are a few things you need to consider before selecting this method of removal.

Is the pH of your water from 5.8 to 10.5? If the pH of your water is lower than 6.5, or higher than 9.0 its best to write or call to discuss a few ways of improving your removal conditions. Don't know your pH... you need a water test before ordering a system!

Recomended Removal Limits: Total Iron limit is 7ppm, Manganese 2.0ppm, Hydrogen Sulphide 2.0ppm, visit the Katalox spec sheet to see more of its removal capabilities.

What is the intended maximum flow rate in your home? This is important for two reasons, one we need to match the maximum flow rate of your home with the maximum service flow rate of your system, and two, the system requires a certain amount of water to clean its media bed properly...

Katalox Lite media has a max recommended flow rate in specific diamter tank systems. So a 0.50cuft system peaks at 4gpm system, a 0.75cuft system at 5.5gpm system, 1.0cuft at 6.5gpm, 1.5cuft at 9.5gpm, and a 2.0cuft at 11gpm.

*You can flow these systems at slighlty higher or lower fow rates than the recommended or optiomal rates. What changes is the removal capabilities, better removal will occur at recommended or optimal flow rates. For example, an ideal service flow rate for maximum removal would be, 0.5cuft = 3.0gpm, 0.75cuft = 3.5gpm, 1.0cuft = 4.5gpm, 1.5cuft = 6.5gpm, 2.0cuft = 7.5gpm.

Don't know your flow rate... Fixture counts and the number of people is a practical way when you have the endless water supply, well-pumping systems often are the limiting factor so a bucket test using a hose from your manifold or tank tee will work great.

Backwashing requirements are important, water temperature is also important. Your water supply will need to be able to meet the backwashing requirments of the specific model. Cold water reduces the minimum flow rate needed to clean the katalox media bed, warmer water increases the minimum flow rate needed.

Back Washing Rate Flow Chart

You can learn more about Katalox Lite media here.

Katalox Lite is sometimes used to aid in or the specific removal of arsenic, if this is why you are choosing this system please contact us prior to ordering to discuss.

Please direct any questions you have to us so we can help you choose the right size and system for your water.

Great Information Links

• Features Brochure
• Installation Manual

What's in the Box

• One Fully Assembled System*
• Water Specialist Advanced Metered Control Valve
• Built-In By-Pass Valve
• Your Choice of 1" or 3/4" Piping Connections
• 3/4" Drain Connection
• Poly Glass Mineral Tank - Black
• Katalox-Light Media
• Gravel Under Bedding
• Riser Rod with Lower Basket
• Full Sized Printed Manual
• * If you live in an area that doesn't have an adequate delivery for a fully assembled system, we can often ship a system in a few easy to assemble pieces.

Warranty

• 5 years on the complete control valve
• 10 years on the mineral tank
• Warrantied for manufactures defects

Support

• The Water Guy Provides
• Free Phone & Email Support
• System Sizing
• Installation Help
• Programing Assistance

Available Sizes

• 0.50 cuft Capacity, 8" Diameter by 44" Tall Mineral Tank
• 0.75 cuft Capacity, 9" Diameter by 48" Tall Mineral Tank
• 1.0 cuft Capacity, 10" Diameter by 54" Tall Mineral Tank
• 1.5 cuft Capacity, 12" Diameter by 52" Tall Mineral Tank
• 2.0 cuft Capacity, 13" Diameter by 54" Tall Mineral Tank
• Smaller & larger systems are available, please inquire with your specific needs
