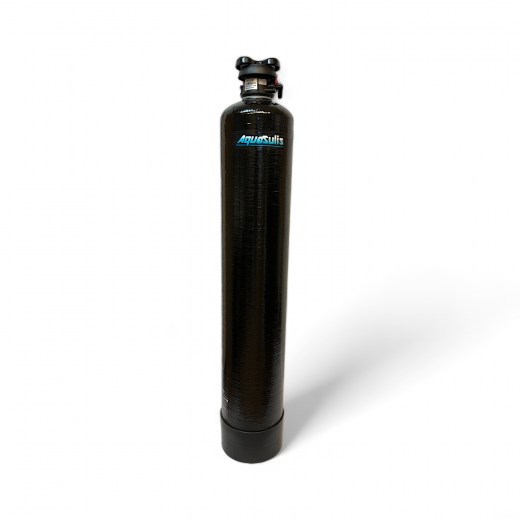

AquaSulis Non-Electric NextSand Sediment Filter System

AquaSulis Non-Electric NextSand System, Sediment Removal made simple

Enhance the purity of your water with the AquaSulis NextSand Filter. NextSand offers a chemical-free solution for removing sediment, particulate, and turbidity from your water supply. This media can filter out particles as small as 3 microns in cold water, with an average removal level of 5 microns. As a non-toxic, non-reactive mineral, NextSand does not alter the water's pH or support bacterial growth. It is largely unaffected by hydrogen sulfide (H2S) and is ideal for surface water and open water sources such as rivers, creeks, and lakes. Additionally, it can be used downstream of chlorination or air injection systems to remove oxidized iron particulates. NextSand is versatile, cost-effective, and long-lasting.

Built to last

The AquaSulis Non-Electric NextSand Sediment Removal Filter System is crafted with carefully chosen components to deliver exceptional performance. Designed for easy installation and long-lasting use, this system ensures your water is consistently particulate free.

The filtration in this system is accomplished by a bed of NextSand media. This media is specifically produced to remove particulate and sediment of all types.

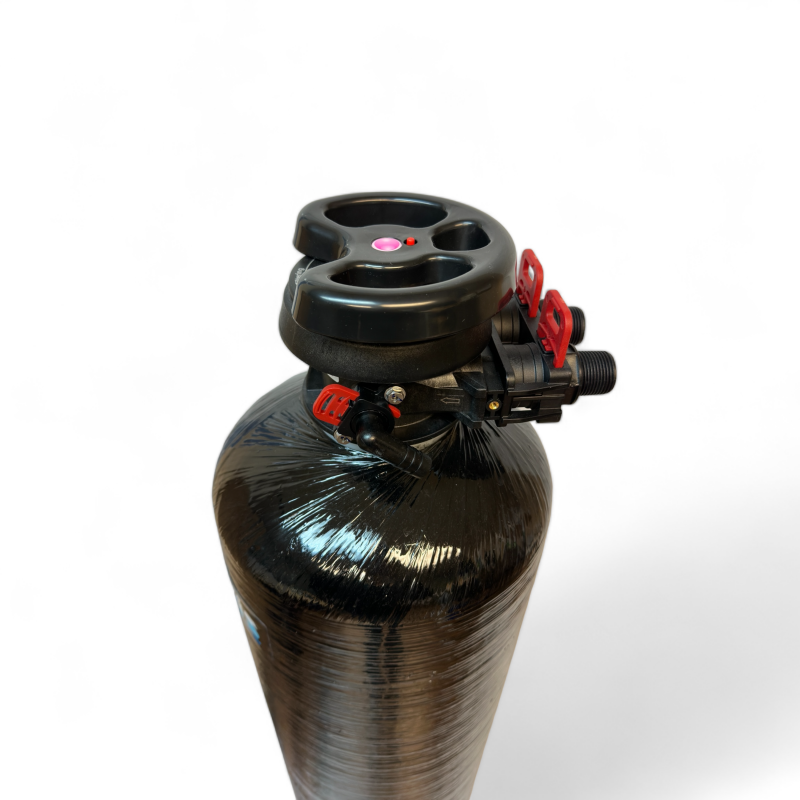

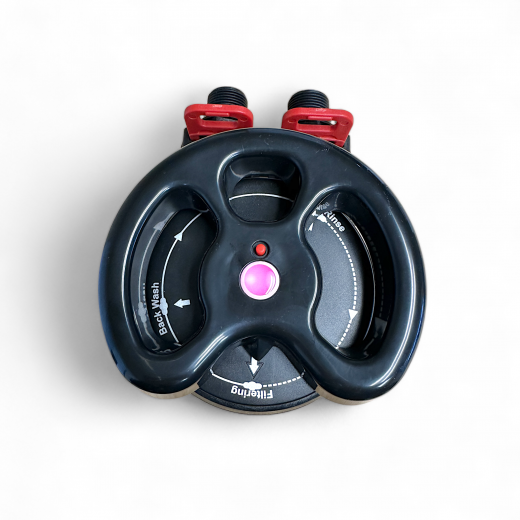

The system comes with 3/4" npt threaded connections for an easy installation. Unlike other systems, this valve head is non-electric, it is manually operated to control the period backwashing and risncing of the filtration media. Installation only requires an in/out and a drain connection.

Maintenance

The media in this filter is long lasting. This is dependent on your water conditions and amount if water through the system. For most applications you will need to replace the media every 7 to 10 years. This can be done easily by removing the valve head and either shop vacuming it out or washing it out and adding more media.

Let's Talk Sediment

Notes

Backwash intervals are something that can be fine tuned to your water and usage. NextSand is a unique filter media that can have it's maximum removal by finding it's sweet spot, niether too clean or too dirty. Often systems start with a schedual of every fours days and then adjust up or down from there.

Resources

• AquaSulis Non Electric NextSand Filter Manual Here
• This made by The Water Guy

Tech Specifications

• NextSand Media
• Gravel Under-Bedding
• Clack Media Tank
• Non-Electric Manual Filter Valve Head
• Bypass Valve
• Set of 3/4" Male NPT Connectors
• 1/2" Barbed Drain Line Connection
• Recommended Operating Pressures 40 to 70psi
• Though designed for cold water usage, warm water can be used. Call our technicians to discuss.

What is in the Boxes

• Tank & Riser Rod with Cap.
• Bag(s) of media.
• Non-Electric Valve, By-Pass, Plumbing Connector Set, & Funnel

Sediement Removal System Specifications

NextSand Media
