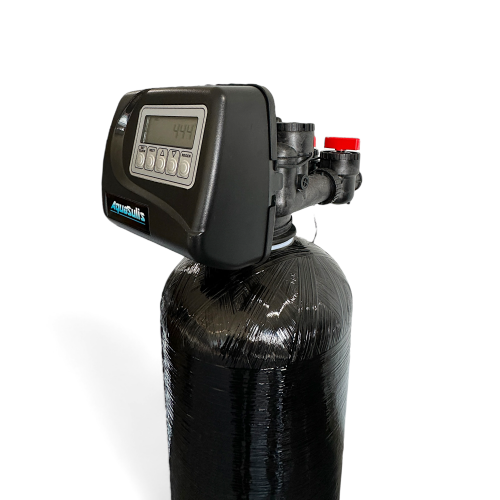

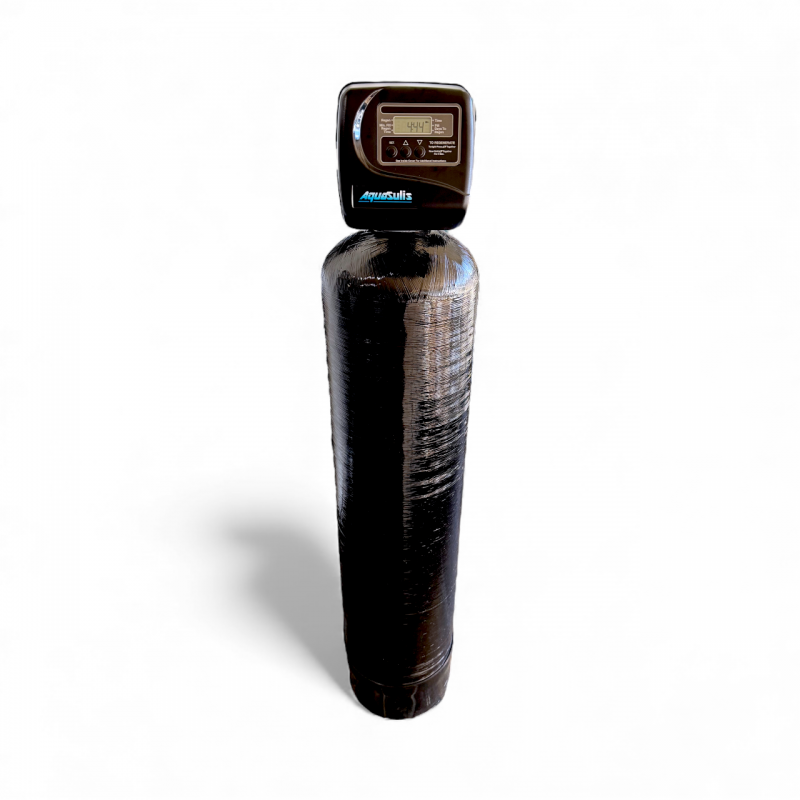

AquaSulis Whole House Sediment Filter System

AquaSulis Whole House Sediment NextSand Water Filtration, Sediment Removal made simple

Enhance the purity of your water with the AquaSulis Fully Automatic NextSand Filter. NextSand offers a chemical-free solution for removing sediment, particulate, and turbidity from your water supply. This media can filter out particles as small as 3 microns in cold water, with an average removal level of 5 microns. As a non-toxic, non-reactive mineral, NextSand does not alter the water's pH or support bacterial growth. It is largely unaffected by hydrogen sulfide (H2S) and is ideal for surface water and open water sources such as rivers, creeks, and lakes. Additionally, it can be used downstream of chlorination or air injection systems to remove oxidized iron particulates. NextSand is versatile, cost-effective, and long-lasting.

Built to last

The AquaSulis by Clack NextSand Sediment Removal Filter System is crafted with carefully chosen components to deliver exceptional performance. Designed for easy installation and long-lasting use, this system ensures your water is consistently particulate free.

The filtration in this system is accomplished by a bed of NextSand media. This media is specifically produced to remove particulate and sediment of all types.

Clack has made some of the biggest advancements in filtration in the last 20 years in terms of rugged reliable equiptment. These made in North America systems are dependable, efficent and longlasting.

Maintenance

The media in this filter is long lasting. This is dependent on your water conditions and amount if water through the system. For most applications you will need to replace the media every 7 to 10 years. This can be done easily by removing the valve head and either shop vacuming it out or washing it out and adding more media.

Let's Talk Sediment

Notes

Backwash intervals are something that can be fine tuned to your water and usage. NextSand is a unique filter media that can have it's maximum removal by finding it's sweet spot, niether too clean or too dirty. Often systems start with a schedual of every fours days and then adjust up or down from there.

Features and Benefits

• Sediment, Particulate removal from your entire water supply
• Also can be used after micronizers or mazzei air injectors to remove oxidized metals
• NextSand is long lasting, hard wearing and inexpensive to replace
• Metered System with Usage History
• Battery Back-Up for Power Outages
• Large Easy to Read Display
• Rugged Proven Design
• High Flow Valve Design
• Downflow Design
• Simple Programming
• Low Maintenance
• *Free Shipping

NextSand Removal System Specifications

Resource Information Links

• Full Clack WS1 CS Manual
• Start Up Proceedure

What's in the Box

• One Fully Assembled System*

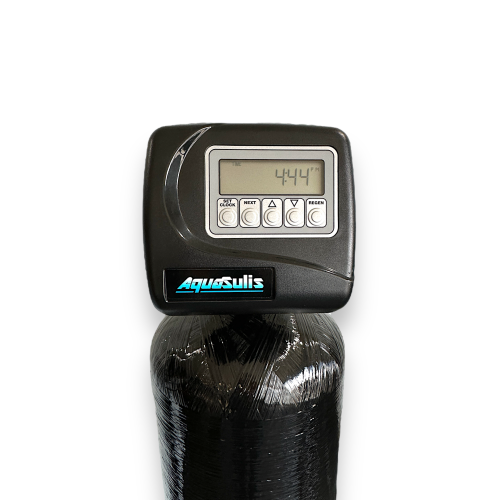

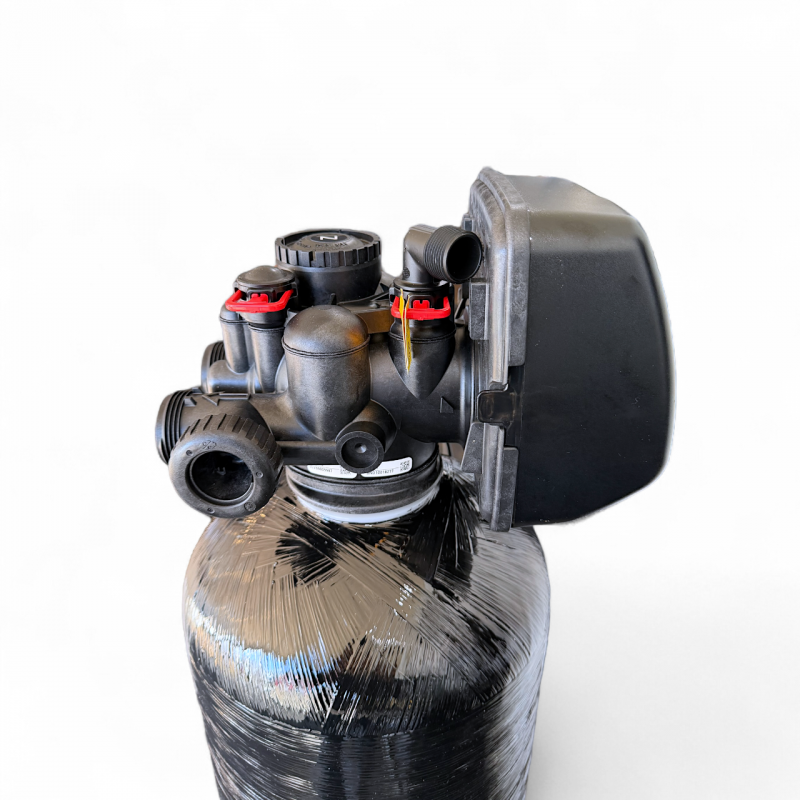

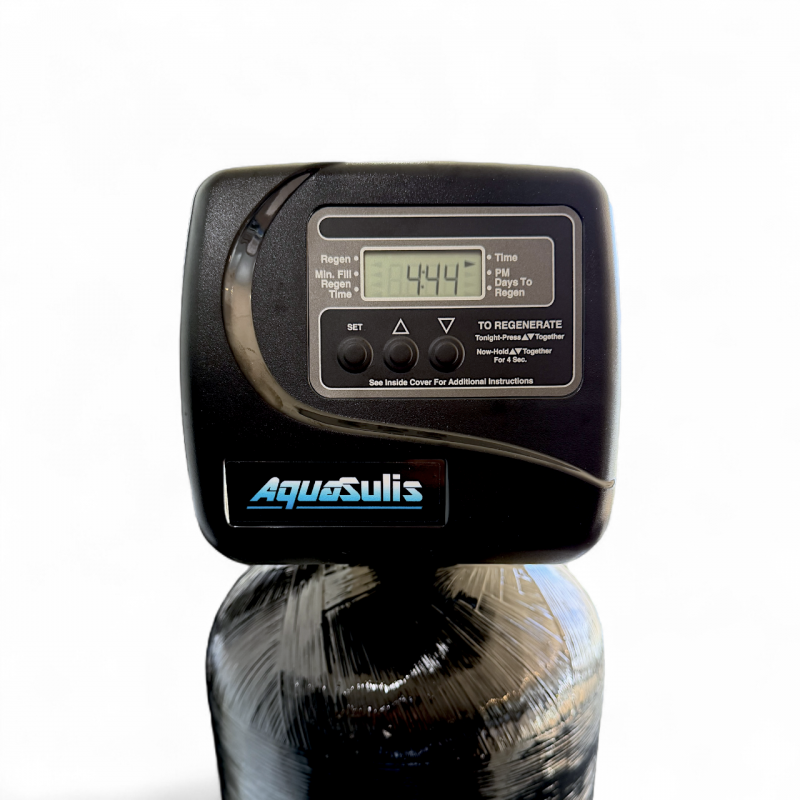

• Clack WS1 CS Series Metered Control Valve

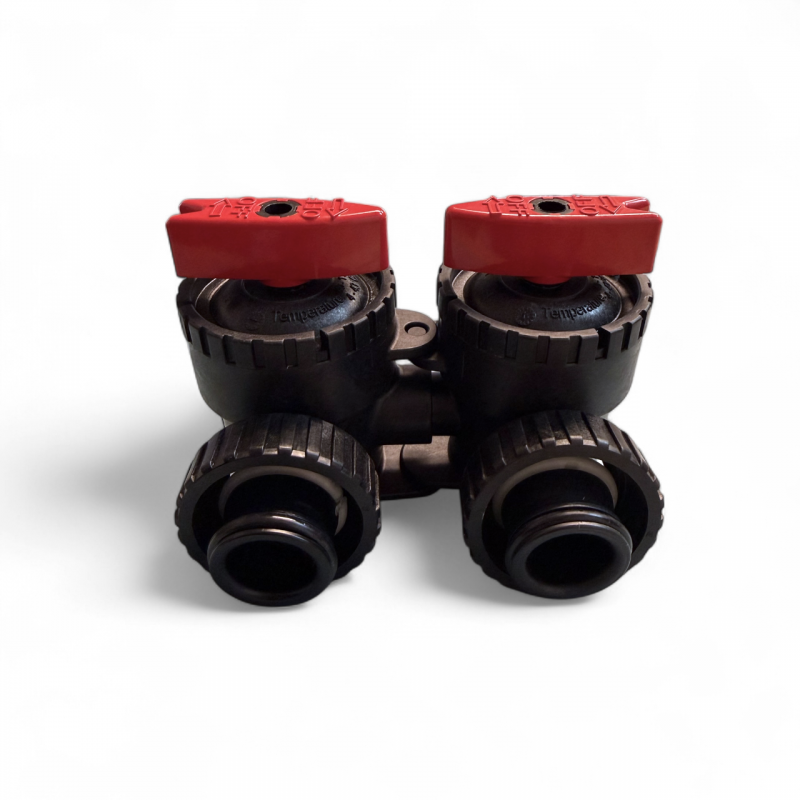

• Matching Dual By-Pass Valve
• Your Choice of many Plumbing Connectors
• Clack or Pentair Structural Poly Glass Mineral Tank - Black
• High Efficiency, NextSand Media
• Gravel Under Bedding
• Riser Rod with Upper and Lower Baskets
• Full Sized Printed Manual

Warranty

• 5 years on the complete control valve
• 10 years on the mineral tank
• Warrantied for manufactures defects

Support

• Free Phone & Email Support
• System Sizing
• Installation Help
• Programing Assistance

Available Sizes

• 0.75 cuft  Capacity, 8" Diameter by 44" Tall Mineral Tank
• 1.0 cuft   Capacity, 9" Diameter by 48" Tall Mineral Tank
• 1.5 cuft   Capacity, 10" Diameter by 54" Tall Mineral Tank
• 2.0 cuft   Capacity, 12" Diameter by 52" Tall Mineral Tank
• 2.5 cuft   Capacity, 13" Diameter by 54" Tall Mineral Tank
• The valve head adds another 7" in height to each tank
• Smaller & larger systems are available, twin parallel systems and commercial ones too, please inquire with your specific needs

NextSand

A chemical-free way of removing sediment, particulate, and turbidity from your water supply. This media can remove material down to 3 microns in size in cold water, with an average of 5 microns removal. NextSand is a mineral that is non-toxic, non-reactive, and does not change the waters pH, or support bacteria growth. Largely unaffected by h2s. Great for surface water, open water sources such as rivers, creeks, and lakes. This can also be used downstream of chlorination or air injection systems to remove oxidized iron particulate. Versatile, inexpensive and long-lasting. In a very short time, NextSand has made traditional MultiMedia obsolete.

Please direct any questions or water reports you have to us so we can help you choose the right size and system for your home & water.

*Shipping

Homes with two zeros in thier postal code may require an additional shipping charge or we can sometimes break down the system into a few boxes and ship it via courier instead of ltl on a truck. Call or write to find out more if you live a little out of the way.

The right system & the right size:

There are a few things to consider when selecting your systems size.

Family size (how many people are in your home), home size (number of bathrooms & kitchens), specialty water use appliances like side spraying showers, peak service flow rate, and water chemistry are all important factors in sizing your new whole home carbon system.

Considerations:

Flowing lower than the recommended rates can increase the removal rate including particles down to 3microns, you can also flow at higher rates then what is recomended though your removal size will go up.

Temperature and NextSand, colder water needs less water in gpm to backwash the media. For example, comparing 5C to 21C water, the difference would be 1.5x increase in water need to backwash at 21C

Don't know your flow rate... Fixture counts and the number of people is a practical way when you have the endless water supply, well-pumping systems often are the limiting factor and if youre not sure a simple bucket test using a short garden hose from your tank tee/manifold, outside tap or yard hydrant will work great.

Do you already have a water test or know your water content? Send it along to us and we can size the system with you.

Additional Options:

Clack has made some really great additional options for this valve, including, a verticle by-pass adapter which allows you to shorten the installation room needed and position the by-pass valve either pointing up or down.
