Aquatec Accumulator Tanks 3/8" JG or 3/8" FNPT Connections

Aquatec Accumulator Tanks

Food-grade pressurized fluid holding tank/pulsation dampener (Accumulator Tank). Tank can be installed in a demand pump driven fluid system to reduce pulsations from switch cycles. This smooths out the flow, and extends the switches life and reduces noise & vibration.


Features and Benefits:

Convenient 3/8” NPT or 3/8” John Guest porting options

Compact design fits in small spaces

Dampens pump switch cycling/pulsations

Limits harmful spikes/water hammer

Minimizes hydraulic noise

NSF food grade materials

Easy to install and maintain

Mounts in any position with included bracket


Specifications:

Maximum Working Pressure – 125 PSI

Wetted Materials – Nylon, Butyl

Internal Volume – 28 ounces

Pre-Charge – 20 PSI

Dimensions – See Installation Guide IMI-165

Weight – 1 lb.

Spec Sheet

Installation Manual

Available Models

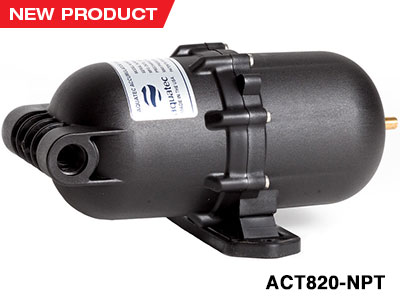

Part # ACT-820-NPT with 3/8” Female Threaded Female NPT Ports

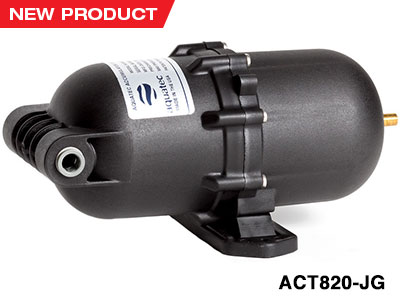

Part # ACT-820-JG with 3/8” John Guest “push-to-connect” Ports
