AquiSense Pearl Aqua Micro 12C LED UV with AutoMate Flow Switch

Pearl Aqua Micro™ with AutoMate Flow Switch

The PearlAqua Micro creates a brand new category of UV disinfection – Micro UV™. It is the world’s smallest UV disinfection system. The Micro offers validated disinfection performance through UV-C LEDs and a patented flow cell design. PearlAqua Micro is designed to be integrated into point-of-use systems.

Central to the PearlAqua Micro 12C is it's UV-C LED technology, coupled with innovative reactor design features, it provides over 99.99% pathogen reduction at 2 gpm (8 lpm), ideal for reverse osmosis systems, water servers, dispensers, directly at a point of use. It features an integrated LED driver, visible “blue glow” option, low power consumption, and unlimited on/off cycling.

Certifcation & Testing

The PearlAqua Micro is Tested and Certified by NSF International against NSF/ANSI 55 for materials and structural integrity requirements and 100% Lead-Free.

The AutoMate Flow Switch/Sensor

This compliments the PearlAqua Micro reactor with added flow sensor features to offer fully automated UV treatment simply with the flow of water. Unlike conventional mercury lamps, UV LEDs can be switched on and off without any lamp warm-up times. This intermittent flow capability leads to greater power savings and prolongs lamp life. The LEDs inside the PearlAqua last for 10,000 hours. The PearlAqua LED system can be turned on/off an infinite number of times per day, so the unit only runs when water is flowing through it, greatly extending the lamp replacement interval. For example, a PearlAqua unit that is on for 2 hours a day will only need a lamp replacement every 14 years!

Flexible Operation

Designed to go above and beyond, powered with 12 Volt DC, solar or battery is now a realistic option. Finally a practical solution for your RV, Boat, portable treatment or off grid cabin. With a high IP rating, the PearlAqua reliably treats water in the most remote places.

Design Difference

LEDs do not transfer heat to the water, thus limiting fouling and ensuring a constant UV output regardless of water temperature.
The ability to operate LEDs during treatment only lowers water temperatures within the UV System. Lower operating temperatures reduce lamp fouling potential and result in fewer maintenance requirements.

AquiSense Pearl Deca Micro 12C

Specification Sheet

Installation Manual

Click Here to Read More

UV-C LED Benefits

LEDs enable on-demand disinfection and are much better suited and easier to implement for intermittent flow applications

Power savings as LEDs operate only during treatment cycles and can be instantly switched off during no-flow conditions

Operating cost savings due to prolonged lamp replacement intervals. Can be extended to multiple years based on running times

Reduces environmental burden by reducing the number of lamp changes

Easier to implement as lamp warm-up intervals are not a concern

Eliminates the requirement for hot water purging in no-flow conditions


The Micro platform is designed for integration in the tightest places. It allows for the application of UV technology in treatment processes never thought possible till now.

An option is available to monitor real-time UV intensity within the reactor chamber for mission-critical applications.Currenlty there is a Pear Micro on the International Space Station!

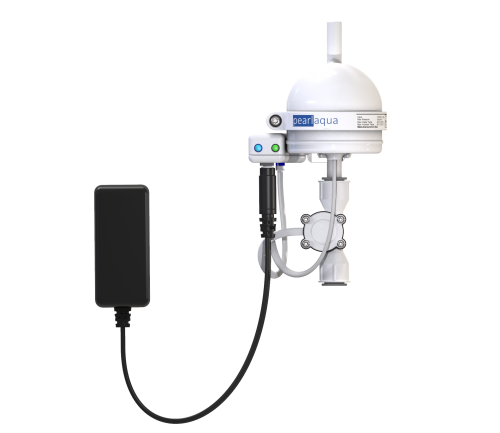

Comes complete as shown.

12v DC Transformer can plug into a regular 115volt outlet or can be powered by 12v DC Directly

Made in the USA by AquiSense
