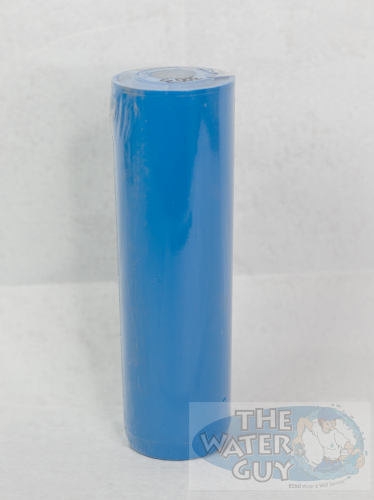

Aries 10" Big Blue Catalytic Carbon H2S Removal Filter Cartridge Part # AF-10-1042-BB

Aries 10" Big Blue Catalytic Carbon Hydrogen Sulfide Removal Filter Cartridge

Catalytic Carbon offers an alternative to chemical treatment. Essentially, catalytic carbon is activated carbon with a modified carbon surface. Activated carbon filtration removes very small amounts of hydrogen sulfide, and has a limited capacity to adsorb hydrogen sulfide.  Catalytic carbon is more efficient due to its unique structure at removing hydrogen sulfide.

Aries FilterWorks Catalytic Carbon cartridge contains Calgon Centaur™ Carbon. This is a specially enhanced carbon developed through an advanced process starting as Granular Activated Carbon (GAC). By altering the electron structure of GAC, it enhances its catalytic capability, enabling it to cause chemical reactions without changing its structure. As a result, it promotes a wide range of chemical reactions where conventional carbons are not effective.

Effective for treatment of “sulfur water” catalytic carbon retains all of the adsorptive properties of conventional activated carbon, but it combines them with the ability to promote or catalyze chemical reactions during the treatment process, catalytic carbon first adsorbs sulfides onto the carbon surface. Then, in the presence of dissolved oxygen, it oxidizes the sulfides and converts them to non-objectionable compounds.

Features:

• Dimensions: 10" x 4.5"D
• Flow Rate: 2.0 gpm Minimum  and 4.0 gpm at maximum effectiveness
• Capacity: 4375 Gallons
• Temperature: Minimum 40F to a maximum of 100F
• Pressure: Minimum 20psi, maximum 125psi
• Use of Calgon centaur™ catalytic carbon
• Removal of chloramines and hydrogen sulfide
• Reduces reliance on additional chemical treatment
• Use of centaur Calgon™
• Model 10" BB or #10 Big Blue
• Part # AF-10-1042-BB
• Quality produced and made in the USA

Click Here to download manufacturer spec sheet.
