Autotrol 255-760 Water Softener

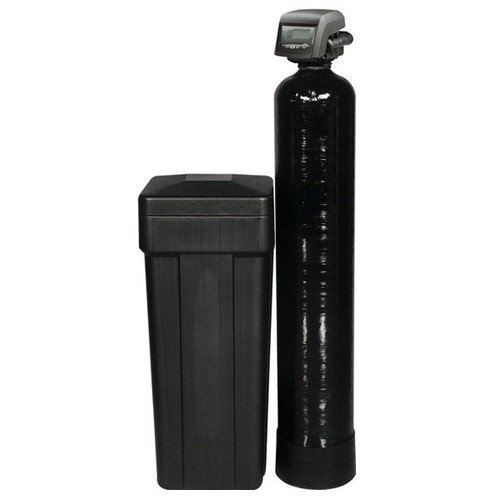

The Autotrol 255/760 metered water softener by Pentair features the Autotrol 255 Performa control valve with Logix 760 electronic controls and Pentair's Structural brand mineral tanks, brine tank, safety float valve, and Purolite's Premium cation cross-linked softening resin. Easy to operate and maintain.

Whole House Water Softening
System & Tank Sizes, Capacity & Flow Rates: 8" x 44" (20,000 Grain, 4.5gpm), 9" x 48" (30,000 Grain, 5.3gpm), 10" x 44" (40,000 Grain, 6.5gpm), 10" x 54" (50,000 Grain 9.0gpm), 12" x 48" (60,000 Grain, 11gpm)

Shipping is included in the pricing, which will differ for some customers is how the systems are shipped to you. If a complete system can be sent through regular carriers then that is the way you will receive it. If you live in a remote area or not easily accessed by small carriers, your system will be shipped as three main components that will require a small amount of assembly. (no tools necessary).

Support, we provide email and phone support for installation including programming, sizing, and connections.

Sizing; If you need help with sizing here is a handy chart to us Sizing Chart You will need to know the basics of your water content ie hardness, iron... The other factor that you will want to consider is the maximum flow rate that you can achieve in your home. One can perform a simple bucket test this in a couple of ways, if you have a well system you can attach a garden hose to the sediment valve on your pressure tank and time the buckets fill rate to come up with a gallon or litre per minute rate, and other can use an outside tap or bathtub for their flow test.

What's in the Box?

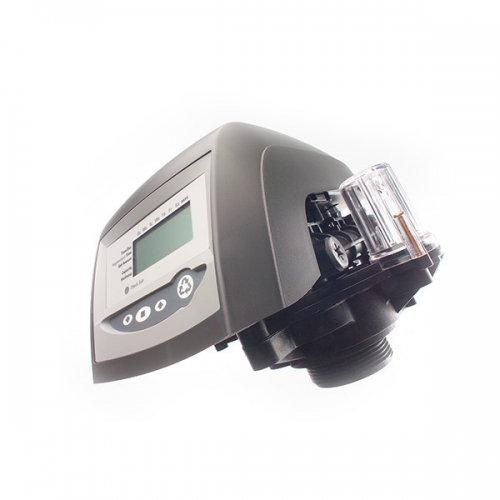

• Autotrol 255 valve with 760 Logix controller
• Fiberglass resin mineral tank (black)
• 4 Way by-pass Valve
• Two tailpieces (plumbing connections)
• Cation softening resin
• Brine tank (black)
• Riser rod with attached lower basket
• Top basket screen
• Full manual
• Full Warranty

Specifications:

• Mineral Tank Sizes: 9" x 48", 10" x 44", 10" x 54", 12" x 48"
• 4 Way By-Pass Valve
• 1" Riser Rod
• Both top and bottom screened baskets
• Brine Tank Size: 15" x 15" x 34"
• Tail Piece Plumbing Connectors: 3/4" MNPT male threaded connectors or optional 3/4" copper tube
• Electrical: 110 -120V Standard North American Outlet
• Manufactured by Pentair

All the docs

• 255 Valve Brochure
• 760 Timer Brochure
• The Full Manual
