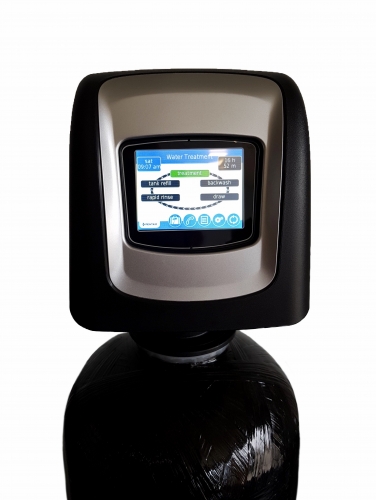

Fleck 5800-XTR2 Series Water Softener and Conditioner with Colour Touch Screen by Pentair

The Fleck 5800XTR2 represents a great step forward in the world of water softening and conditioning equipment. Fleck has always made reliable workhorse water softeners, and filters, and while these tried and true machines are still in service today they were lacking some modern sophistication and conveniences. The 5800-XTR2 has brought them into the modern era, Full Colour Touch Screen, customizable, efficient, multitasking machines that meet today's demands.

The Fleck 5800XTR2 Soft Water Advantage

A resin-based exchange system that uses sodium is still the most effective way to remove hardness (calcium & magnesium) from your water supply. They can also remove moderate amounts of ferrous iron and colloidal manganese. Featuring softwater refil for a cleaner brine tank.

Sizing:

Family size, home size, service flow rate, and chemistry are all important factors in sizing your new home system.

What is the intended maximum flow rate in your home? Why is this important... a single cubic foot of resin media has a maximum flow rate of 5gpm (gallons per minute). So a 1cuft system is a 5gpm system, 1.5cuft = 7.5gpm, 2.0cuft = 10gpm

Don't know your flow rate... Fixture counts and the number of people is a practical way when you have the endless water supply, well-pumping systems often are the limiting factor so a bucket test using a hose from your manifold, yard hydrant, bathtub or tank tee will work great.

If you have ferric iron, high iron and or high manganese, H2S, Hydrogen Sulphide,  contact us with the details and we can find the right variation or supplemental system for you.

We use IonPlus and Purolites 8% Cation resin simply because its the most efficient media for normal water softening requirements. You can learn more about our Ionplus Cation resin here. 10% Resin for Chlorinated Water is avialable and so if Fine Mesh or FM Resin for higher Iron situations. Call or write to find out which is the right fit for you.

Please direct any questions or water reports you have to us so we can help you choose the right size and system for your water.

Features and Benefits

• Our Largest and Esiest to Read Full Colour LCD Display
• Battery Back-Up for Power Outages, No programing lost
• Super Salt Efficiency
• Metered System
• High Flow Valve Design
• Simple Programming
• Low Maintenance
• Ability to run dry contacts both open or normally closed
• Free Shipping

Great Information Links

• Features Brochure
• Full Owners Manual

What's in the Box

• One Fully Assembled System*
• Fleck 5800-XTR2 Advanced Metered Control Valve
• Matching By-Pass Valve
• Your Choice of 1" or 3/4" Piping Connectors
• Pentair Structural Poly Glass Mineral Tank - Black
• High Efficiency 8% Crosslinked Cation Resin
• Riser Rod with Upper and Lower Baskets
• Full Sized Printed Manual
• * If you live in an area that doesn't have an adequate large box courier service, don't worry we can often post a system in two or three easy to assemble pieces.

Warranty

• 5 years on the complete control valve
• 10 years on the structural mineral tank
• *Warrantied for manufactures defects

Support

• The Water Guy Provides
• Free Phone & Email Support
• System Sizing
• Installation Help
• Programing Assistance

Available Sizes

• 0.7 cuft   Capacity,   8" Diameter by 44" Tall Mineral Tank
• 1.0 cuft   Capacity,   9" Diameter by 48" Tall Mineral Tank
• 1.25 cuft Capacity, 10" Diameter by 47" Tall Mineral Tank
• 1.5 cuft   Capacity, 10" Diameter by 54" Tall Mineral Tank
• 2.0 cuft   Capacity, 12" Diameter by 52" Tall Mineral Tank
• Smaller & larger systems are available, please inquire with your specific needs
