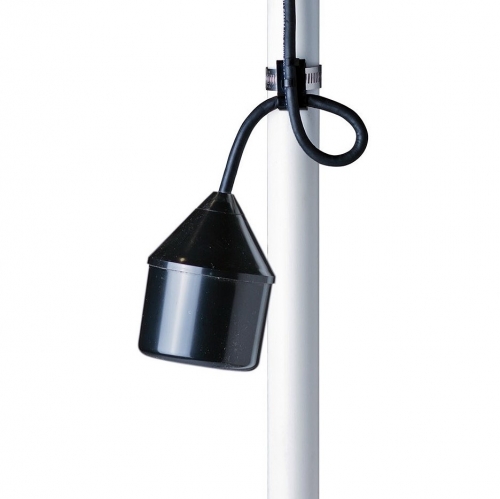

Float Switch Pump-Up or Pump-Down 115V-1/2hp, 230v-1/2 to 1hp, Corded 20ft

Pump Up or Down - 20ft Corded Float Switch, works with 115volt 13hp to 1/2hp motors and 230volt 1/2hp hp to 1hp motors

Mechanically-activated switch, narrow-angle float switch designed to activate pressure switches, pump controls, panels and alarms. This narrow-angle sensing device is used to accurately monitor liquid levels in Potable Water, Water, and Sewage applications. The SJE SignalMaster® SPDT control switch can be wired to work in either direction. Pump-up or pump-down, normally open or normally closed applications. It is not sensitive to rotation.

When wired as Normally Open (high level)

The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level, and turns off (opens) when the float drops slightly below horizontal.

When wired as Normally Closed (low level)

The control switch turns on (closes) when the float tips slightly below horizontal signaling a low level, and turns off (opens) when the float tips slightly above horizontal.

Features:

• NSF Standard 61 protocol approved by Water Quality Association
• Can be wired to work in either normally open or normally closed applications (Single Pole, Double Throw)
• Mechanically-activated, snap action contacts
• High impact, corrosion resistant, polypropylene float housing
• Float not sensitive to rotation
• Control differential of 1.5 inches (4 cm) above or below horizontal
• Green colored cap for easy identification of SPDT control switch
• UL Listed for use in water and sewage
• CSA Certified
• SJE Pump Up/Down (115v Maximum 1/2 HP) or (230v Maximum 1 HP) Float Switch (20' Cord)
• Part Number - 1004838
• Model Number - SJE-20SGMSPDTWE

Specifications:

• Cable: Flexible 18 gauge, 3 conductor (UL, CSA) SJOW, water-resistant (CPE)
• Float: 2.74 inch diameter x 4.83 inch long (7.0 x 12.3 cm) high impact, corrosion resistant, PVC housing for use in sewage and water up to 140°F (60°C)
• Maximum Depth: 20 feet (9meters), 13 psi (90 kPa)
• Electrical: 5 amp, 125.250 VAC, 50/60 Hz

Note: This switch is not recommended for controlling: Electric loads less than 100 milliamps, 12 VAC, Non-arcing electric loads
