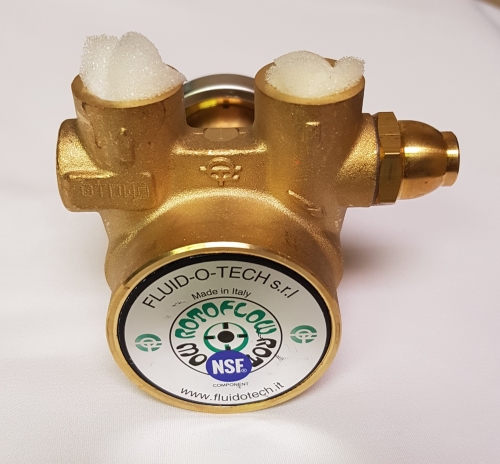

Fluid-O-Tech Brass Rotary Vane Commercial RO Pump, Clamp On Style Model # PA301

Fluid-O-Tech, ROTOFLOW,  No-Lead Brass Rotary Vane Pump, Clamp On Style

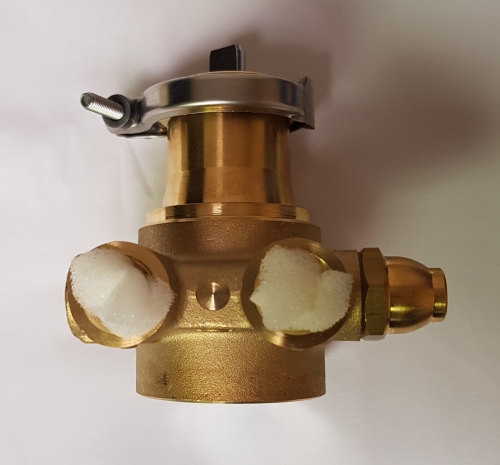

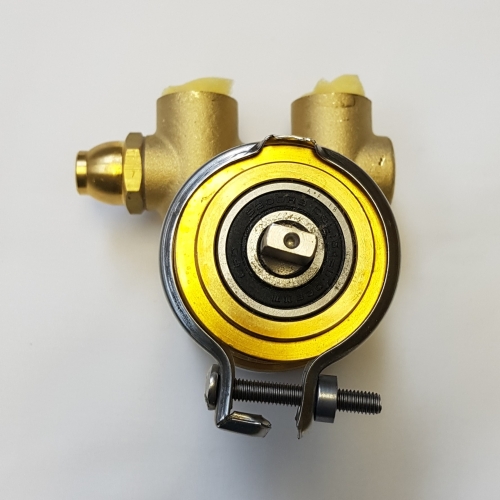

The rotary vane pumps, manufactured by Fluid-o-Tech® and sold worldwide under the trademark Rotoflow®, are volumetric pumps designed for pumping water and moderate aggressive liquids with low flow at high pressure.Technical features and manufacturing characteristicsThe rotary vane pump is brass made with a stainless steel AISI 303 rotor, while the pumping chamber and the vanes are in carbon graphite. The inlet and outlet ports are 3/8” GAS or NPT threaded. The pumps are designed to be directly mounted to the motor with a stainless steel clamp. For different mounting arrangements see our technical info “optional mountings”.Maximum operative temperature: 70 °C (158 F)

Features

• Self priming
• Quiet operation
• Pulsation free flow
• Internal relief valve available
• Long service life
• NFS and WRAS listed
• Comes with SS Clamp

Specs

No-Lead Brass Construction

Stainless Steel Shaft

Part # PA301

Roto-Flow Pumps are Designed and made in Italy by Fluid-O-Tech

Click here for the Data/Spec Sheet

Click here for the Manual

Used on Waterite's RSX350 Reverse Osmosis Systems

Part # APR3BZ & PA-301
