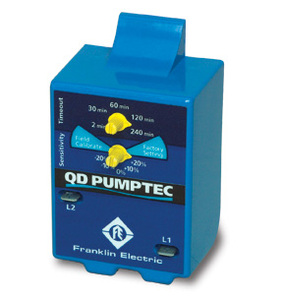

Franklin Electric QD Pumptec part model # 580-007-0600 or # 5800070600

PUMP PROTECTION AT ITS BEST

Franklin Electric’s QD Pumptec provides the high performance pump protection you need. Designed to monitor the motors load and supply voltage and to shut down the pump to prevent damage, Pumptec protects your water system investment by covering a broad range of ratings and fault conditions. Such as low-flow wells, dry wells, pump damage, clogging, bound pump, or power mishaps, spikes and outages.

Exclusively designed for Franklin QD Relay Control Boxes, QD Pumptec is a solid state sensing device that monitors motor load and incoming power to automatically shut off a single-phase, 3-wire motor when related fault conditions are detected. QD Pumptec protects the life of your 4-inch pump.

Features:

• Two Control knobs to adjust the sensitivity and the timeout sessions.
• Simply plugs into your Control Box, without any additional wiring or tools needed.
• Adjustment settings: From 2 to 240 Minutes
• Fits: 1/3, 1/2, 3/4 and 1 HP franklin QD control boxes
• 230V, single phase power, 60HZ
