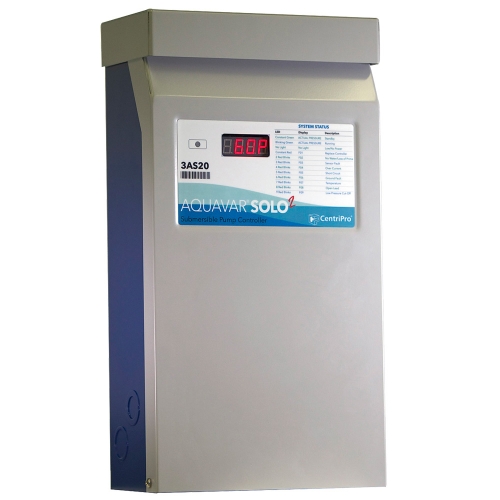

Goulds Aquavar SOLO 2™ 1AS15, 1/2 to 2HP, 230V, 2 & 3 Wire, Single Phase, Constant Pressure Controller

Goulds Aquavar SOLO 2™ Constant Pressure Controller

Aquavar SOLO 2

The Aquavar Solo 2 is a variable speed, constant pressure controller designed for submersible well pumps. The controller monitors pressure and adjusts pump speed to maintain a constant pressure. The SOLO 2 provides consistent water pressure with all the tried-and-true features of the SOLO plus innovative upgrades.

Easy Set-Up

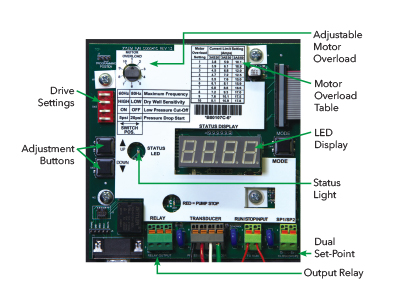

• Simple wiring and menu set-up

Retrofitable

• Turns virtually any conventional system into a premium constant pressure system

User-Friendly Information Center

• Fade-resistant LED display indicates system pressure, speed and current
• Error log – displays last four faults and can be reset

Literature Downloads

Click Here for the Sales Glossy Brochure

Click Here for the FAQ - lots of good stuff in here

Click Here for the Installation Manual

Specifications:

• Single phase input: 230V
• Single phase output: 1/2 - 2 HP motors
• Works with 2 & 3 wire single phase pumps
• Reduces motor cable wire size
• NEMA 3R Enclosure: rainproof outdoor/indoor rated
• Lightning and power surge protection
• Easy to adjust pressure control push-buttons
• Provides motor protection on long motor leads
• Flashing LED for troubleshooting and status
• Includes pressure sensor and shielded cable
• Pressure set point adjustable from 20-85 using the standard 100 psi transducer

Model: 1AS15

Manufactured by Goulds, ITT, CtentraPro Xylem
