Grundfos Submersible SBA 3-35 AW 1hp Pump 115v Part # 97896331

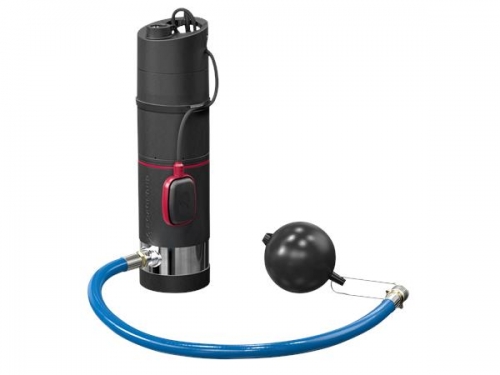

Grundfos SBA 3-35 AW 115v Submersible 1hp Pump with side inlet & flexible suction hose with a floating suction hose with floating suction strainer

Grundfos SBA submersible multistage boosters are complete all-in-one units, designed to pump clean water for break tanks, shallow wells, and rainwater applications. They come with an integrated control unit eliminating the need for an external pump controller.

Grundfos SBA 3-35 AW is an all-in-one submersible booster designed for pumping clean water for domestic use. The SBA is built on the proven SB platform and comes with an integrated control unit. This eliminates the need for an external pump controller in the house. It is silent when submerged and therefore a noiseless alternative to surface-mounted pumps. The pump is built from high-quality composite and stainless steel materials that are resistant to corrosion.
The SBA 3-35 AW is equipped with a 44.9 ft supply cable, and the maximum installation depth is 32.8 ft below the water level, with a liquid temperature ranging from 32 °F to 104 °F.

• The pump starts automatically when the pipe pressure falls below 2.2 bar.
• The SBA 3-35 AW is ideal for operation in a well or ground water tank, as it easily prevents solid particles from entering the pump.
• The maximum particle size is 1 mm.
• The pump features a float switch, which promises the user a convenient experience with the automatic start/stop operation of the pump and provides dry running protection.
• The pump is equipped with a side inlet/flexible hose with a floating suction strainer.
• The single-phase model is effectively protected against any accidental overload by built-in thermal protection.
• The pump has built-in thermal protection, which immediately stops the pump if it overheats. Having cooled down, the pump automatically restarts when it reaches a normal temperature.

Suitable for

• Residential water pressure boosting
• Residential rainwater harvesting

Grundfos Part Number - 97896331

Click Here to download the manufacturers brochure
