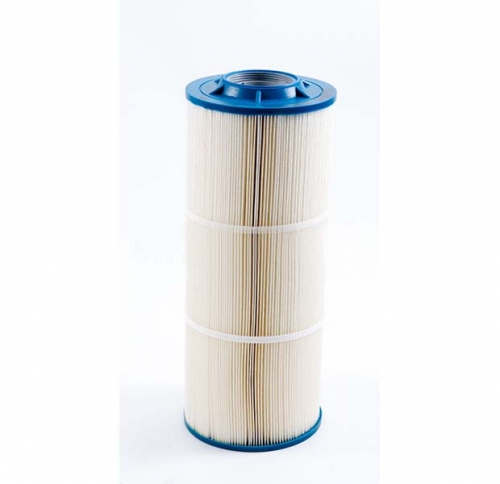

Harmsco Hurricane Poly-Pleat 90 Series 1 Micron Absolute Filter Cartridges Part # PP-HC-90-1

Harmsco Hurricane Poly-Pleat 90 Series 1 Micron Absolute Filter Cartridges

Features:

• Absolute rated one micron filter media removes cyst-sized particles for safe, cyst-free drinking water
• Pleated polypropylene filter media provides more surface area for longer filter life and increased particle removal FDA listed materials for use in potable water and liquid food applications
• End caps, center tubes and media are thermally bonded as one integral component for added strength and to provide superior end sealing
• Full product line for standard, Big-Blue* and Hurricane® filter housings *Big-Blue is a registered trademark of Plymouth Products, Inc.

Specifications:

• Micron rating - One micron absolute for cryptosporidium and giardia cysts
• Filter media - Meltblown polypropylene inner layer with outer layers of polypropylene scrim material for support
• Shrink Wrap - Standard for all Poly-Pleat™ cartridges
• Temperature - 140°F (60°C) max*
• Center tubes - Rigid PVC with perforations or molded polypropylene
• Netting - Polypropylene netting standard for 2-3/4” O.D.; 10” and 20” cartridges use polyethylene netting
• Flow Rates - Up to .5 gpm ft2 media
• End Caps - Pliable PVC, sealing surface built in
  * Temperature limits vary and depend on pressure and time under load.

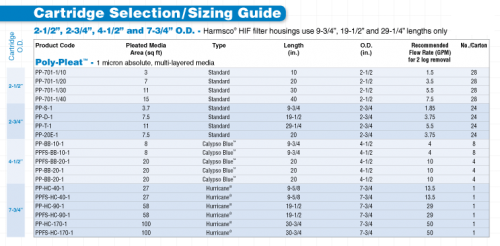

Sizing Guide:

• Absolute Micron Rating : 1
• Media (sq ft) : 58
• Recommended Flow Rate 29 (GPM)
• Length (in) : 19-1/2 in
• O.D. (in) : 7-3/4 in
• NSF 61
• 1 filter per case/box

Harmsco recommends sizing filters at 70% of maximum flow rate for the best performance.
