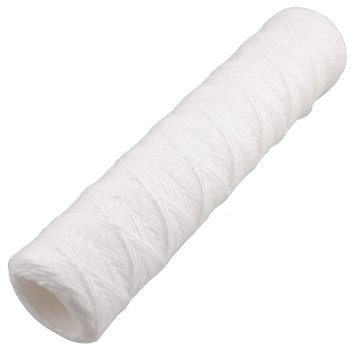

Hypurion 10" Standard String Wound Polypropylene Filter & Core

Hypurion 10" Standard, 9 7/8" x 2 1/2" String Wound Polypropylene Filter & Polypropylene Core

*Choose your micron rating when adding the filters to your cart.

Filter Specifications:

• Size: 9 7/8" L x 2 1/2" D Cartridges for 10” Standard Housings and 10" Slimline Housings.
• Micron Ratings available in: 0.5, 1, 5, 10, 25 and 50 micron nominal
  Precise winding configuration (Waterite SureSpun technology) design to promote effective particle capture and capacity by maximizing filtering surface area.  ‘A’ type end configuration denotes double open end (DOE).  High-density polypropylene core to retain its rigidity.
• Feed Water:   Municipally/City treated water, surface or well water
• Temp range:   2.0°C to 55.0°C (*Note if high temperatures are needed, see our other listings for Stainless Steel Core and Cotton Tin Core Filters)
• Capacity:  Determined by raw water turbidity, Sediment etc...
• Colour:   White
• Material:  Virgin, polypropylene fiber cord and inner core chemical and bacterial resistant.  All materials conform to FDA test standards and NSF/ANSI Standards 42/53. No bleaches or extractables. Contains no solvents, binders or additives.
• Brand: Hypurion, HSW Series
• Manufacturer: Waterite Technologies
• Packaging: Sterile, poly film, outer - corrugated box 50 filters per case

Initial Δ P Model - Rating @ Flow Rate

• HSW10005A - 0.5 micron - 4.2 psi @ 10 GPM
• HSW10010A - 1 micron - 3.1 psi @ 10 GPM
• HSW10050A - 5 - 2.2 psi @ 10 GPM
• HSW10100A - 10 - <1 psi @ 10 GPM
• HSW10250A - 25 - <1 psi @ 10 GPM
• HSW10500A - 50 - <1 psi @ 10 GPM
