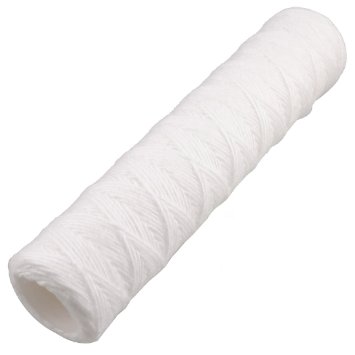

Hypurion 20" Standard String Wound Polypropylene & Stainless Steel Core

Hypurion 20" Standard String Wound Polypropylene & Stainless Steel Core

*Choose your micron rating when adding the filters to your cart in either 1, 5, 10, or 25 microns

Specifications:

• Size: 19 7/8" L x 2 1/2" D Cartridges for 20” Standard Housings and 20" Slimline Housings.
• Micron Ratings Available: 1, 5, 10, 25 and 50 micron nominal
  Precise winding configuration (Waterite SureSpun technology) design to promote effective particle capture and capacity by maximizing filtering surface area.  ‘A’ type end configuration denotes a double open end (DOE).  High-density polypropylene core to retain its rigidity.
• Feed Water:   Municipally/City treated water, surface or well water
• Temp range:   90°C (* if higher temperatures are required see our other listings for cotton wound tin core filters)
• Capacity:  Determined by raw water turbidity, Sediment etc...
• Colour:   White

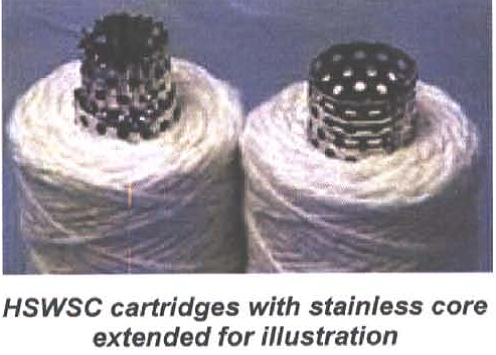

• Material:  Virgin, polypropylene fibre cord and Stainless Steel inner core both chemical and bacterial resistant.  All materials conform to FDA test standards and NSF/ANSI Standards 42/53. No leachable or extractable. Contains no solvents, binders or additives.
• Brand: Hypurion, HSWSC Series
• Manufacturer: Waterite Technologies
• Packaging: Sterile, poly film, outer-corrugated box 50 filters per case

Initial Δ P Model - Rating @ Flow Rate

• HSWSC20010A - 1 micron - 3.1 psi @ 10 GPM
• HSWSC20050A - 5 - 2.2 psi @ 10 GPM
• HSWSC20250A - 25 - <1 psi @ 10 GPM
