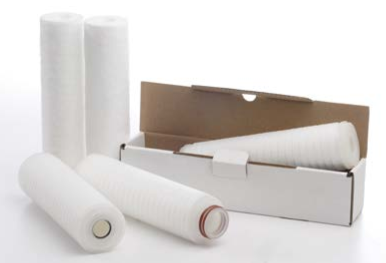

Hypurion HPP 10" Pleated Polypropylene 0.65 Micron High Purity Filter Cartridge with External Cage

Hypurion HPP filters offer a long service life and are free of binders, adhesives or surfactant for compatability with a wide range of fluids. They have exceptional solids holding capacity. Layered sheets of micro media provide advanced particle retention and a long service life.

Waterite style B (GE/Suez style C): 213 top c/w silicone o-ring, closed bottom (GE/Suez style G), designed to fit all standard Pentek style 10” housings and to eliminate any bypassing.

• RO Pre-filtration
• DI Pre-filtration
• Cooling Towers
• Med. & Low Viscosity Liquids
• Pharmaceutical
• Food & Beverage
• Laboratory

• Pleated Filter Media: 100% Virgin Polypropylene
• External Cage/Outer Shell: High-strength Polypropylene
• O-ring silicone 213 o-ring & Polypropylene Gaskets

Recommended Replaceable Pressure Drop: 35.6 PSI (2.5 kg/cm2)

18 psi @ 5 GPM

Other Specifications

• Micron Rating: 0.65 micron nominal rating
• Dimensions: 2  ½”  diameter  (nominal)  X  9  7/8”  length  (nominal)
• Capacity: Determined by raw water turbidity
• Temperature: 3.0°C to 80.0°C
• Packaging: Plastic shrink heat-sealed and individually boxed
• Part Numbers: HPP10006SB/ HPP10006SB0

Click here for the manufacturers Specification Sheet

*do not exceed 55psi forward ΔP or 22psi reverse ΔP CORPORATE MARK: Notes: Polypropylene  and  silicone  have  a  broad  range  of  chemical  resistance.    Users  should refer to a standard chemical resistance chart for compatibility if using HPP cartridges in chemical applications. All materials used in HPP series cartridges meet US FDA requirements for food contact under the regulations in 21CFR

End Type: Waterite  style  B  (GE  style  C):  213  top  c/w  silicone  o-ring,  closed  bottom  (GE  style  G),  designed  to  fit  all  standard  Pentek  style  10” Standard housings  and  to  eliminate  bypassing of the filter media.

This filter design was based on the popular Hydronix filter series

Other micron ratings in this series, 0.20, 0.45, 0.65, 1, 5 micron nominal rating.
