JCY05P or 5CY-S 1/2 HP J-Class Cyclone Series Jet Pump by Franklin Electric

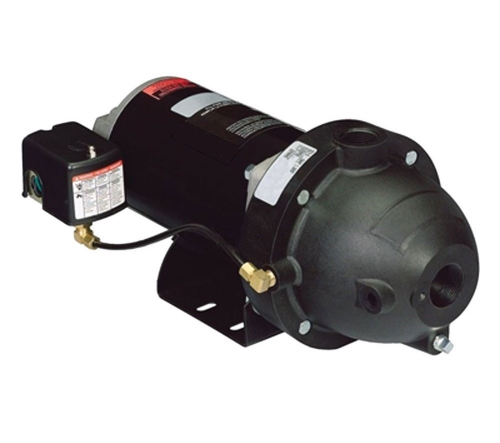

JCY05P 1/2 HP J-Class (Jacuzzi) Cyclone Series Jet Pump

Manufactured by Franklin Electric one of the most trusted names in quality pumps today!

Rugged Thermoplastic & Stainless Steel Construction, extra protection for low pH, outdoor applications and other aggressive water conditions.

Catalog # 91020050 Model Number JCY05P old part/model # 5CY-S

Can be switched easily to run on either 115v or 230 Volts

Fast shipping direct from our warehouse, insurance and tracking number included!

Cyclone Series Shallow Well Jet Pump Features:

• Available in non-corrosive thermoplastic body & Impeller
• Replaceable in-line nozzle/venturi design for maximum hydraulic efficiency and ease of service
• Self cleaning, anti-clogging injector screen
• Thermoplastic impeller and diffuser ensure increased hydraulic performance
• Floating stainless steel eye seal for maximum performance and efficiency
• Square-flange mounting provides easy serviceability without disturbing the plumbing
• Built-in drain plug for easy winterizing and servicing
• Mechanical shaft seal allows positive protection against leaking
• Pressure switch is installed and set at 20/40 psi
• Handles water temperatures up to 120 °F/49 °C and working pressure up to 75 psi
• Connections: 1" NPT discharge and 1-1/4" NPT suction
• 2 year warranty from the date of manufacturer & 1 year from the date of installation.

Click here to download the Product Guide in PDF file format
