Manifold Kit Stainless Steel with Wall Bracket and SS Hardware Part # TFP-07M125SSMB-01

1 1/4"- Stainless Steel Manifold Kit with Wall Bracket and SS hardware.

Features:

This is a very nice complete manifold kit for your new or upgraded pressure system, ideal for constant pressure systems, cycle stop valve systems or when you simply have limited space. Stainless steel provides you with the utmost protection from chemically aggressive and acidic low pH water. It is also the safest material for drinking water as it does not contain lead or other harmful materials that can leach into the water, especially in low pH conditions.

This kit has to bushing options so you can accommodate all pressure switches, sensors and transducers commonly found on the market today. Just add the pressure tank of you choice and your complete... (controller manufactures recommend the 2 gallon tanks for flow rates under 10gpm and the 5 gallon tanks for higher flow rates... see the related products tab for more information)

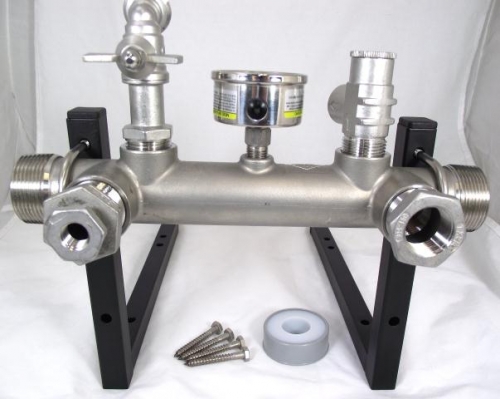

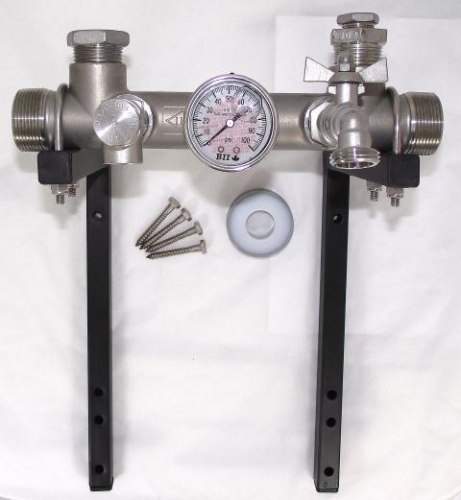

What's in the box?

• Stainless Steel Manifold  - 11"/28cm in length - 1 1/4" MNPT outside and 1" FNPT inside connections
• Stainless Steel Sediment Tap / Hose Bib 3/4"
• Stainless Steel Pressure Relief Valve 3/4"
• Stainless Steel 1" x 3/4" Bushing
• Stainless Steel 1" x 1/2" Bushing
• Stainless Steel 1/2" x 1/4" Bushing
• Stainless Steel Liquid Filled 2.5" Pressure Gauge
• Teflon Tape Specifically for Stainless Steel

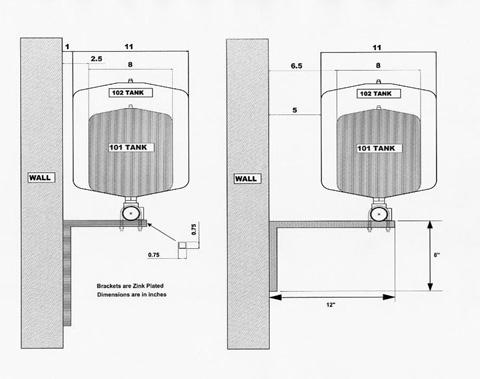

Bracket Kit: Interchangeable, allowing for two different mounting options (See large picture for diagrams)

• 2 - Steel "L" Brackets (with pre drilled holes)
• 4 - SS lag screws
• 2 - SS "U” bolts
• 4 - SS & nylon nuts
• 2 - Plastic bracket end caps.

Note: Brackets are either Zinc Plated or Black Baked Enamel Coated for corrosion resistance.

Other Specifications:

Part # TFP-07M125SSMB-01

Alt. Part # 07M-125-CM-SS

Manufactured by Boshart Industries

Note: This is not for use with 20 gallon pressure tanks as recommended by Franklin Electric and the Monodrive XT 2 Wire Controller for 2 wire pumps. In this case we would suggest using a conventional tank tee as a manifold.
