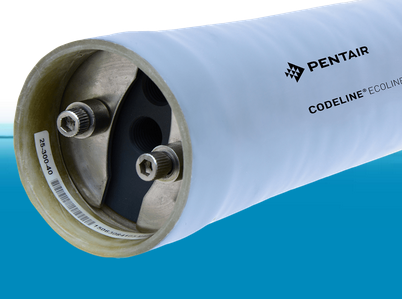

Pentair Codeline Ecoline 25-300 Series 2.5" x 40" Part # 25-300-40

Codeline Ecoline 25-300 is membrane housing  series of 2.5” diameter with end entry design. This is used for commercial RO applications in operating pressure of 300 PSI. These are made up of epoxy/ glass composite to meet the demands of long term and continuous use. Codeline 25-300 can accommodate any standard make of 2.5” nominal diameter spiral-wound membrane element.

Features

Head assembly made of engineering thermoplastics for high strengths and superior chemical resistance
Corrosion resistant superior quality with improved system performance
Integrally formed locking  grooves provide better locking strength
Mirror finish ID for easy and quick loading and unloading of membranes
Exteriors coated with high gloss polyurethane paint for UV resistance
Head seal area is formed by mandrel surface, hence this is more accurate
Compact design for use in compact and low energy water treatment units

Sizing - 2.5" x 40"

Operating - 300psi

Click here for the spec sheet
