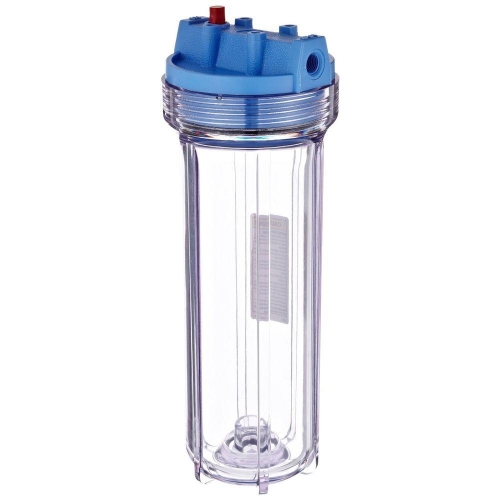

Pentek 10" Slimline Housing 1/2" FNPT in/out Blue/Clear with Pressure Relief Valve Part # 158214

Pentek 10" Slimline Housing 1/2" FNPT inlet and outlet,  Blue Cap and Clear Sump with Pressure Relief Valve

The sump is made of clear styrene-acrylonitrile (SAN) for easy viewing of flow and cartridge conditions, the cap is made of reinforced blue polypropylene for strength and resistance to chemicals. The cap has 1/2" female threaded input and output connections and a nitrile butadiene rubber (Buna-N) O-ring to ensure a watertight seal. The housing can hold cartridges that are approximately 10" x 2.5". It has an initial pressure drop of 2 psi at a flow rate of 3 GPM, and a maximum operating pressure of 125 psi, and a maximum operating temperature of 125°F (51.7°C). This filter housing is used in many applications, including drinking water filtration, food service, and process systems, among others.

Part # 158214
Made by Pentair/Pentek

Related Parts:
Housing Wrench Part # 150539
Single Bracket Part # 244047
Twin/Double Bracket Part # BK2N1MW (1/2" nipple on request)
