Pentek QC10-CBRR Quick Change Filter System Part # 155785-43

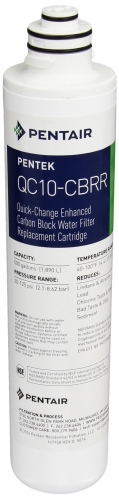

Pentek’s Quick Change Filter Cartridge Model QC10-CBRR

Model QC10-CBRR - Part # 155785-43

The Pentek QC10-CBRR filter cartridge was designed for easy filter changs, simply made with a quarter-turn of the wrist. Water is automatically shut off by the filter head valve during the changing of the filters.

NSF/ANSI Standard 42/53 Tested and Certified for reduction of:

• Chlorine taste & odor
• Lead
• Lindane
• Atrazine
• Cryptosporidium
• Giardia cysts
• Sediment

QC1-CBRR specifications:

• .5 GPM Flow Rate
• 2.2" (5.6cm) in Diameter by x 11.6" (29.5cm) in length
• Temperature Range: 40° to 100° F or 5° to 38° C
• .5 Micron Rating
• 500 Gallon Capacity (varies with in-coming water conditions)
• 1/4" John Guest Push Type Fitting Connections
• Part number 155785-43

Other names and part numbers this filter system is known by; Culligan 750R, 1000R, Culligan SY-1000, RV-1000, IC-1000, and American Plumber DW600 filtration system.

To change the filter, simply give the cartridge a half twist (to the left or counter clockwise) and remove. To install the new filter, press the filter up into the filter head and twist (to the right or clockwise) and you’re done.

The Pentek quick change filter head can be sued with a variety of different filters to suit your needs… QC10-CBRR, QC10-EPR, QC10-GACR, QC10-TSGACR, QC10-CB1R, or QC10-SED1R to name a few.
