Pentek Valve In Head Series 10" Std. 3/4" in/out Black/Blue Filter Housing Part # 150164

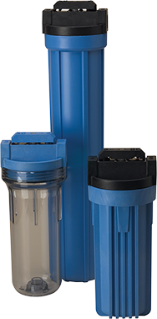

Pentek Valve In Head Series 10" Std. 3/4" in/out Black/Blue Filter Housing

Pentair/Pentek Valve-in-Head Filter Housings incorporate the same rugged design and application features as our Standard 3/4" NPT Housings. The internal valve-in-head allows both inlet and outlet ports to be simultaneously shut off with a half turn of the handle. This eliminates the need for external shut-off valves. Radial sealing O-rings and sealing surfaces are continuously cleaned each time the valve is used, ensuring leak-proof operation.

Features:

• Pressure relief/bleed button on inlet side of cap
• Leak-proof seal
• Available with clear or opaque sumps
• Thick walls for increased strength
• Housing – Polypropylene (opaque) or Styrene Acrylonitrile (clear)
• Cap – Reinforced polypropylene
• Button Assembly – 300 Series stainless steel, EPDM, and polypropylen
• Valve Parts – Delrin
• O-Ring – Buna-N
• Temperature Rating– 40-125°F  (4.4-51.7°C)
• Maximum Pressure – 125 psi  (8.6 bar)
• Part Number - 150164

Manufactured by Pentair

Click Here to dowload manufacture spec sheet
