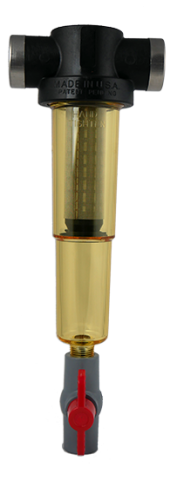

Rusco Trapper Series 3/4" Sediment Hot Water Filter Kit

Rusco Hot Water Trapper Series Sediment Filter - 3/4" FNPT Housing with Flush Valve choose your Mesh Filter Element Size

Trapper Series sediment filters are used in many different applications, from domestic, commercial, agricultural, and industrial. Uses include Geothermal systems, Cooling towers, Hot water heater, Boilers, Hydronic radiant floor heating systems, Industrial (Machine coolant and cutting fluids), Spas, Jacuzzis, Pools, Greenhouses, Pressure Washers, Food Processing, Solar Thermal Collectors. Rusco's Trapper filters have been providing an industry-leading sediment filtration solution since the '70s.

Rusco Hot Water Trapper Series Filters provide the same efficient and powerful sediment filtration as our regular Trapper filters while adding tolerance to high temperatures and extra storage for sediment. Additionally, the Hot Water Filter’s thermoplastic construction allows for increased chemical resistance.

3/4” FNPT Hot Water Trapper Series Filter Specifications:

• Flow capacity: 1 - 25 GPM *see our note below on flow and pressure below
• Max pressure: 150 PSI
• Dimensions: 14-3/8”L x 5”W
• Max Temperature: 200°F (93°C) @ 40 PSI
• Filter head material Schedule 40 PVC
• Port size: 3/4" FPT in/out
• Filter Mesh Element - Choose from the drop-down menu
• Manual Flush Valve included
• A Small roll of Teflon tape included
• Part Number: 3/4-XX-ST-HT-F (pick your screen size when adding to cart)
• Made in the USA

These are the available Stainless Steel Elements when selecting this Kit

• 30 Mesh / 533 Microns
• 60 Mesh / 254 Microns
• 100 Mesh / 152 Microns
• 140 Mesh / 104 Microns
• 200 Mesh / 74 Microns

Notes:

*Extra Mesh Screens can be ordered separately for this housing in another listing here.

*Separation works best at higher flow rates, pressure loss is less at lower flow rates, it's always a bit of a trade-off.

Click here for the manual/install sheet in PDF file format

Click here for a handy chart to help select your mesh screen size
