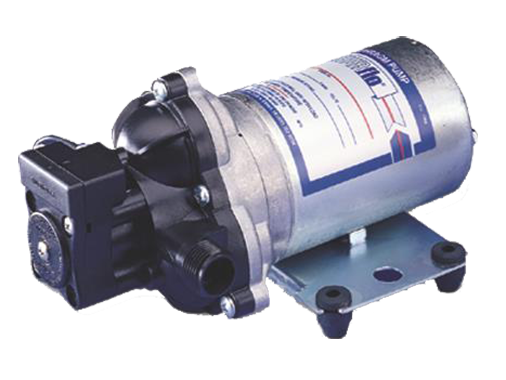

Shurflo 2088 Series Diaphragm Pump, 115volt AC, 4gpm/14.4pm, 1/2" MPT

Shurflo 2088 Series Diaphragm Pump

The 2088 Series diaphragm pump is one of Shurflo®'s most widely used residential, industrial and agricultural pumps. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming.  They are designed for easy maintenance and can be mounted in any position.

Features

Pressures up to 150 PSI [10.3 BAR]
Self-Priming up to 12 Vertical Feet [3.7M]
Chemically Resistant Materials
Designed for Fluid Transfer & Spraying
Can Run Dry without Damage
Built-In Check Valve
Flow Rate 4.0gpm/14.4lpm
1/2" Female Threaded Connections


Specifications

Model Number: 2088-594-154
Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
Ceck Valve: (1-Way Operation) Prevents Reverse Flow
Cam: 3.0 Degree
Motor: Permanent Magnet, P/N 11-150-10, Thermally Protected
Voltage: 115 Volt AC Nominal
Pressure Switch: Adjustable Shut-Off (Range 30-50 PSI)
Factory Set @ 45 psi Shut Off, Turn on 25 PSI 5 PSI
Liquid Temperature: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max.
Prime: Self-Priming Up To 12 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
Ports: 1/2" Threaded Male Connections

Construction Materials

Plastics - Polypropylene
Valves- Santoprene
Diaphragm - Santoprene
Fasteners- Zinc Plated Steel
Net Weight: 5.1 Lbs (2.31 Kg)
Duty Cycle: Intermittent (See Temperature Rise Chart)
Approvals: NSF Listed, CSA Components
Typical Applications: Water Delivery
