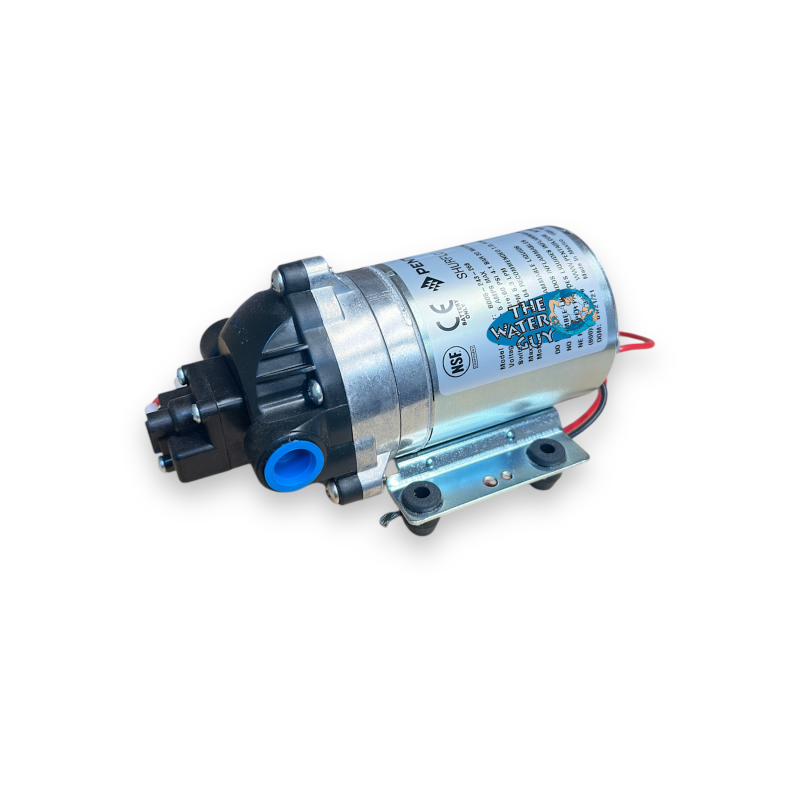

SHURflo 8000 Series Diaphragm Delivery Pump 1.7 GPM, 115 VAC, 60 PSI With 3/8" FNPT Connections

Shurflo 8000 Series Diaphragm Pump

The 8000 Series diaphragm pump is Shurflo®'s most widely used residential, industrial and agricultural pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming.  They are available in a variety of chemically resistant materials. They can be mounted in any position, and are designed for easy maintenance.

Features

Pressures up to 150 PSI [10.3 BAR]
Self-Priming up to 14 Feet
Chemically Resistant Materials
Designed for Fluid Transfer & Spraying
Can Run Dry without Damage
Built-In Check Valve
Flow Rate 1.8gpm/5.7lpm
3/8" Female Threaded Connections


Specifications
MODEL NUMBER: 8025-733-256
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-195-01, Thermally Protected
VOLTAGE: 115 VAC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 40-60 PSI)
Factory Set @ 60 PSI, Turn On 45 PSI +/- 5 PSI
LIQUID TEMPERATURE: 180 Degrees Fahrenheit (82 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 14 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Nylon
VALVES- EPDM
DIAPHRAGM- Santoprene
FASTENERS- Zinc Plated Steel
NET WEIGHT: 5.3 Lbs (2.4 Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
APPROVALS: UL/CSA/NSF Listed
TYPICAL APPLICATIONS: Soil Extraction, Water Delivery
BYPASS: 45PSI
