Shurflo 8000 Series Diaphragm Pump, 12volt DC, 1.4gpm/5.3lpm, 3/8" FPT

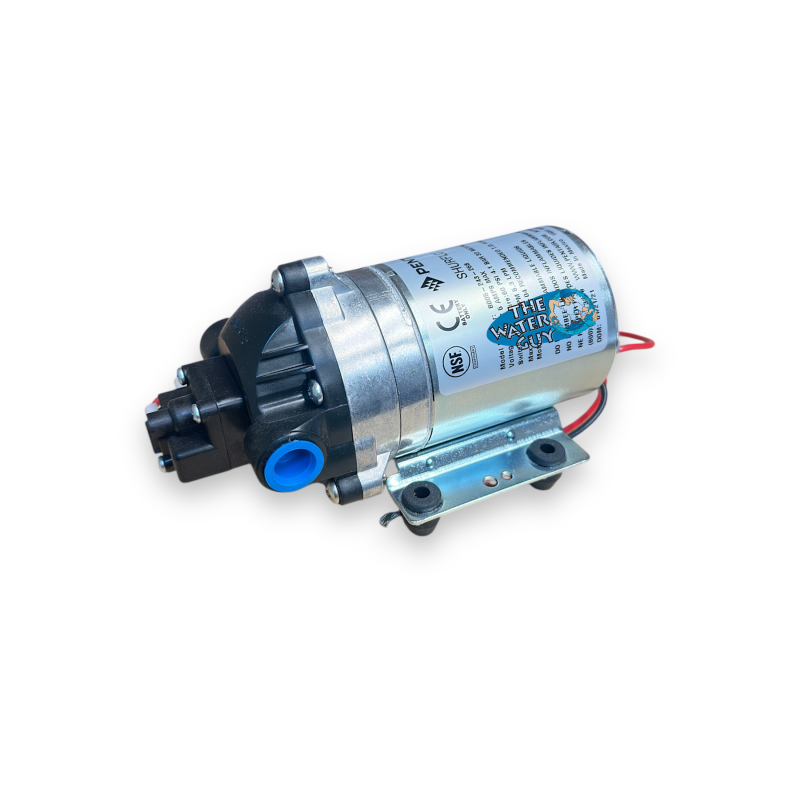

Shurflo 8000 Series Diaphragm Pump

The 8000 Series diaphragm pump is Shurflo®'s most widely used residential, industrial and agricultural pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming.  They are available in a variety of chemically resistant materials. They can be mounted in any position, and are designed for easy maintenance.

Features

Pressures up to 150 PSI [10.3 BAR]
Self-Priming up to 8 Vertical Feet [2.4M]
Chemically Resistant Materials
Designed for Fluid Transfer & Spraying
Can Run Dry without Damage
Built-In Check Valve
Flow Rate 1.4gpm/5.3lpm
3/8" Female Threaded Connections


Specifications:
MODEL NUMBER: 8005-243-256
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-148-04, Thermally Protected
VOLTAGE: 12 VDC Nominal
PRESSURE SWITCH: Adjustable Shur-Off (Range 40-60 PSI)
Factory Set @ 60 PSI, Turn on 45 PSI 5 PSI
LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 10 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female Connections
MATERIAL OF CONSTRUCTION:
PLASTICS- Polypropylene
VALVES- EPDM
DIAPHRAGM- Santoprene
FASTENERS- Zinc Plated Steel
NET WEIGHT: 3.8 Lbs (1.72 Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
APPROVALS: NSF Listed
TYPICAL APPLICATIONS: Water Delivery
BYPASS: 45 PSI
