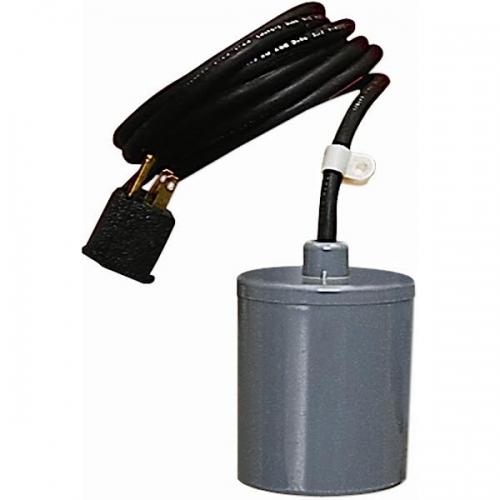

SJE Rhombus Mechanical Float Switch, Pump Up, with 20ft Piggy Back Plug

SJE Rhombus Pump-Up Float Switch

The SJE PumpMaster® pump switch is not sensitive to rotation or turbulence, allowing it to be used in both calm and turbulent applications.

Specifications

CABLE: Flexible 16 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)
FLOAT: 3.05 inches diameter x 3.56 inches long (7.75 x 9.04 cm) high impact, corrosion resistance, PVC housing for use in sewage and water up to 140°F (60°C)

ELECTRICAL:

    120 VAC 50/60 Hz Single Phase:
        Maximum Pump Running Current: 13 amps
        Maximum Pump Starting Current: 85 amps
        Recommended Pump HP: 1/2 HP or less
    230 VAC 50/60 Hz Single Phase:
        Maximum Pump Running Current: 13 amps
        Maximum Pump Starting Current: 85 amps
        Recommended Pump HP: 1 HP or less

NOTE: This switch must be used with pumps that provide integral thermal overload protection.

A Pump Switch is designed for Horsepower (HP) rated loads and is not suitable for control (pilot duty) applications. It will fail prematurely when switching loads less than 1 Amp at 120 VAC. Select a float switch from our Control Switch offering for control applications.

Model - 20PMU1WP

Part # - 1002733
