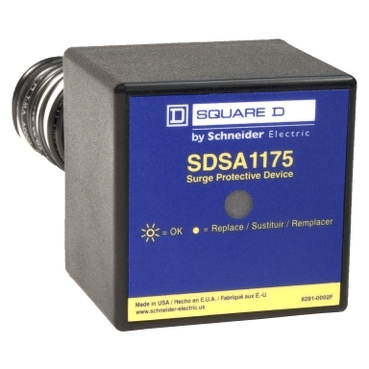

Square D, Surge & Lightening Protection Device SDSA1175 type, Part # 150814902

Surge Protective Device SDSA1175 type Square D

Square D™ brand Surgelogic™ SDSA1175 SPDs offer a simple means to bring down initial surges to manageable levels and can offer additional value in a cascaded SPD system. Their compact design allows surge suppression to be installed adjacent to power panels or directly on sensitive equipment.

Features:

• SDSA1175 are designed and listed for indoor or outdoor installation and surge suppression for single-phase three-wire 120/240 Vac or two-wire 120 Vac 60 Hz electrical services
• Suitable for indoor and outdoor application
• Short circuit current rating 25kA
• LED indicated operational status
• Field-proven MOV design provides response time less  than 50 nanoseconds and provides lower clamping voltage than traditional gas tube arresters
• Part Number: 150814902, 156593902 and SDSA1175
