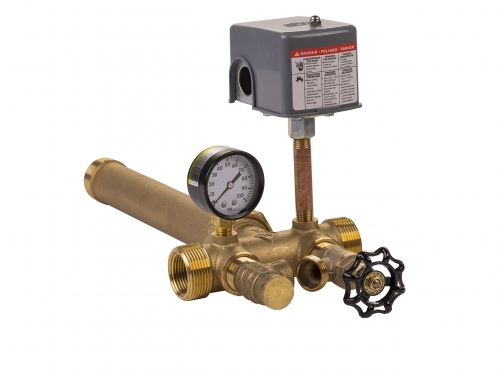

Tank Tee Kit, Bronze, 14" Long, 1" with Union, Pressure Switch & Fitting Kit

Tank Tee Kit, Bronse, 14" Long , 1" with Union, Pressure Switch & Fittings

The 1" Long Tank Tee Installation Package for presssure tanks is supplied to you unassembled. When assembling this package use approved thread sealant (dope) and or teflon tape. All parts are lead free.

What's in the box:

Square-D Pressure Switch 40/60 PSI (adjustable) *this item can be substituted for a 30/50, see dropdown option above*
1/4" x 2" Brass Nipple
1/2" Brass Sediment Tap (boiler drain)
1/2" Brass Pressure Relief Valve (100psi)
2" Pressure Gauge (0-100 psi)
14" Long 1" Bronse Tank Tee with Union

Part Number # 07TK-14X1-2U-KIT

Tank Connection 1" FIPT
End Connections 1" MIPT outside and 3/4" FIPT inside
Drain Ports         1/2" FNPT
Top Ports            1/4" FNPT

* for pressure tanks requiring a 1" connection
