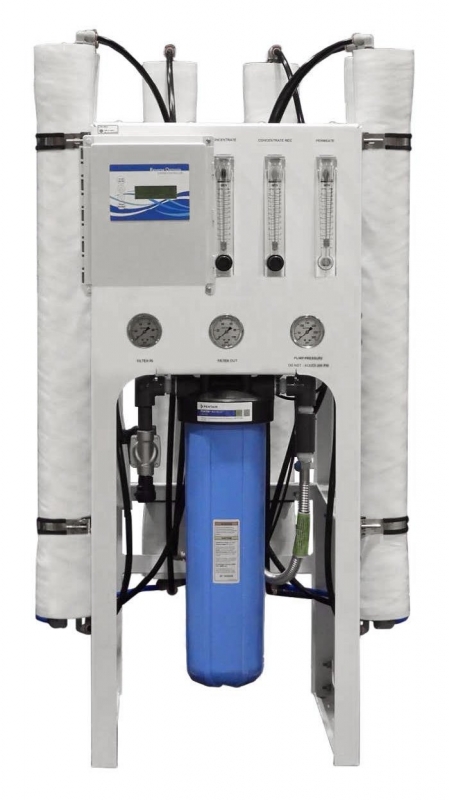

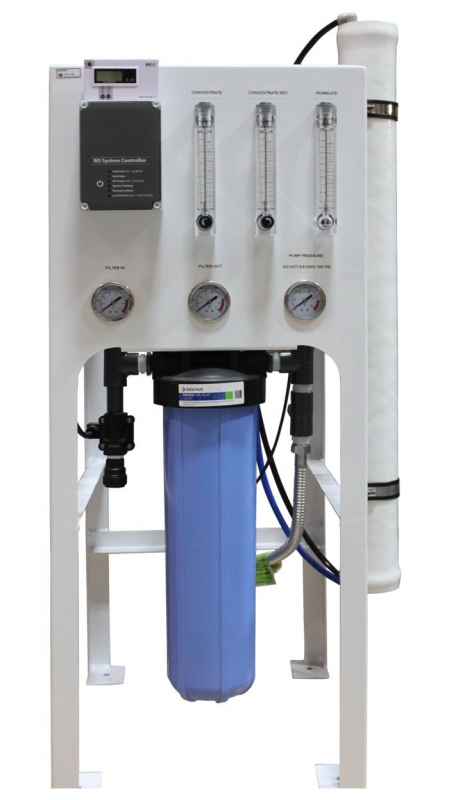

Ultra-Series Commercial Reverse Osmosis Systems

Ultra Series Reverse Osmosis Systems are big on standard features. The Ultra-Series feature a robust design that allows for versatility in a variety of of feed water qualities and temperature variations. All systems come standard with Ultra Low Energy Membranes, and offer high rejection and flow rates for quality system performance.

These Ultra Low Energy Units, feature ½ HP,  ¾ HP, or 1HP multi-stage booster pumps with stainless steel bodies, for Ultra performance and corrosion resistance. All models are equipped with the RO System Controller, for precise control of auto-flush options, operation indication, pre-treatment and storage tank status, more!

Available sizes, GPD Rating, 2600-Basic, 2600-Deluxe, 5200-Basic, 5200-Deluxe, 10,400-Deluxe

Basic Model Features
Powder-Coated Aluminum Frame
Franklin BT4 Series Multi-Stage Pumps
Motor Thermal Overload Protection
GE AK-90LE Ultra Low Energy Membrane Elements
Stainless Steel Membrane Housings
5 Micron Sediment Filter Cartridge
Pentek 20” Big Blue Filter Housing
Permeate Flow Meter
Concentrate Flow Meter with Adjustable Needle Valve
Recycle Flow Meter with Adjustable Needle Valve
Low Pressure Switch
Pump Operating Pressure Gauge
Pre-Filter In/Out Pressure Gauge
Product Water Check Valve
Pretreatment Lockout
Pre-wired Tank Level Control (Control not included)

Deluxe Model Additional Upgrade Features
Auto-Flush Solenoid Valve & Multiple Programming
Dual Probe TDS Meter
Codeline Fiberglass Membrane Housings

*All Ultra Commercial RO systems, made in Canada and are CSA Certified.

Literature:

2600 & 5200 Brochure Spec Sheet Download

7,800, 10,400, 15,600 Brochure Spec Sheet Download

Full Manual Download
