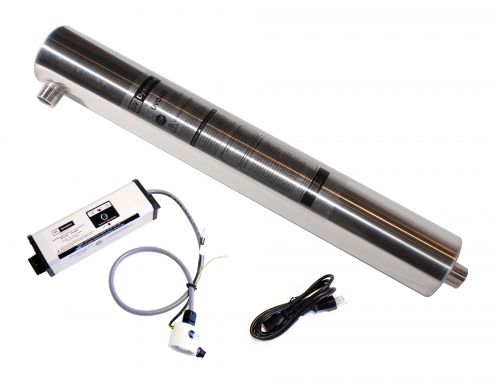

UVDynamics 12 to 16gpm UV System Model # UVD485E

UVDynamics 12gpm @ 40mj to 16gpm at 30mj, Stainless Steel UV System

Free Shipping

Reliable protection in your home, business and industry for point of entry applications. The UVDynamics model UVD485E is used in point of entry installations in homes, businesses and industry. The 30mj/cm2 dose of the UVD485E at 16gpm is ideal for general disinfection and can also be set for 12gpm at 40mj/cm2 with a flow restrictor. The design of the UVD485E facilitates the need for a system with basic features in a popular flow rate. The UVDynamics model UVD485E was designed using sophisticated computer modeling software and then verified by independent third-party testing using accepted bio-dosimetry methods by GAP Enviro Microbial Services.

Features:

• Advanced Ultraviolet Water Disinfection
• Passivated and polished 304 stainless steel reactor chamber measuring 6.5”/16.5 x 24.25”/62cm
• 9000hr long life coated UV lamp
• Microprocessor controlled UV power source with audible and visible lamp failure alarms
• Annual lamp change reminder timer
• Lamp life remaining feature
• 1” MNPT fittings in and out
• Domed quartz sleeve to simplify servicing
• No tools required for regular servicing
• Easy-service lamp connector
• Low cost replacement parts
• Comes complete and ready to install
• Flow rate of 16gpm (60L/min) delivers UV dose of 30mj/cm2
• Flow rate of 12gpm (45L/min) delivers UV dose of 40mj/cm2
• EPA Est 089330-CAN-001
• Model number UVD485E, 400407

Made in Canada

If you are needing this size of system but require more features such as an automatic solenoid valve or UV intensity monitor please visit our other listings for the UVD485 and UVD485S models.
