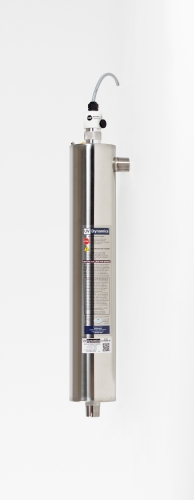

UVDynamics 15 to 20gpm Compact High Flow UV System Model # UVD605E

New UVDynamics 605E can flow at 15 to 20gpm, High Flow in an Ultra Compact Design

Free Shipping

Reliable protection in your home and business, for point of entry and high flow point of use applications. The UVDynamics model UVD605E is used in point of entry installations in homes, businesses and cottages with space restrictions. The 30mj/cm2 dose of the UVD605E at 20gpm is ideal for general disinfection and can also be set for 15gpm at 40mj/cm2 with a flow restrictor. The compact design and overall footprint of the UVD605E facilitates small spaces including under the sink and also point of use installations. The UVDynamics model UVD605E was designed using sophisticated computer modeling software and then verified by independent third party testing using accepted bio-dosimetry methods by GAP Enviro Microbial Services.

Features:

•  Advanced Ultraviolet Water Disinfection
• Flow rate of 20gpm (30L/min) delivers UV dose of 30mj/cm2
• Flow rate of 15gpm (23L/min) delivers UV dose of 40mj/cm2
• Passivated and polished 304 stainless steel reactor chamber
• 9000hr long life coated UV lamp
• Microprocessor controlled UV power source with audible and visible lamp failure alarms
• Annual lamp change reminder timer
• Lamp life remaining feature
• ¾” MNPT fittings in and out
• Domed quartz sleeve to simplify servicing
• No tools required for regular servicing
• Easy-service lamp connector
• Low cost replacement parts
• Comes complete and ready to install
• EPA Est 089330-CAN-001
• Model Number UVD605E, 400713

Made in Canada

Coming soon... new spec sheet for this system
