UVDynamics 20 to 26gpm UV System Model # UVD800

FREE SHIPPING !

List Price: $1217.78

$975⁰⁰

$975⁰⁰
SKU	UVD800
Brand	UV Dynamics
	7 Related Products

Upgrades & Options

Flow Control Valve

Finance Options

PURCHASE INQUIRIES

On Sale Savings ! Your Savings !
$242.78

Delivery Info

In Stock:	Ships in 1 - 3 days
Shipping:	FREE

Overview
Brand Brand Info
Related Related Products 7

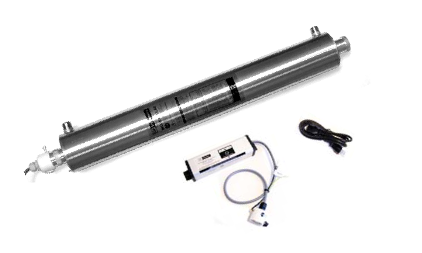

UVDynamics 20 to 26gpm Stainless Steel UV System

Free Shipping

This model has the expansion connections for the optional Automatic Solenoid Valve and UV Intensity Monitor

The UVDynamics model UVD800 is applicable for general disinfection in smaller commercial / industrial applications. Ultraviolet (UV) water disinfection protects against waterborne micro-organisms and is effective against Giardia and Cryptosporidium without the use of chemicals. The UVDynamics model UVD800 was designed using sophisticated computer modeling software and then verified by independent third party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.

The microprocessor controlled UV power source is designed for long life and includes both visual and audio lamp failure alarms as well as an annual lamp change timer. This includes standard feature an isolated low voltage solenoid drive output. Optional solenoid valves simply plug into the unit and require no additional interface cables or transformers to complete the solenoid safety shut off feature.

Features:

Flow rate of 26gpm (98L/min) delivers UV dose of 30mj/cm2
Flow rate of 20gpm (75L/min) delivers UV dose of 40mj/cm2
Passivated and polished 304 stainless steel reactor measuring 3.5” x 37”
9000hr long life coated UV lamp
Microprocessor controlled UV power source with audible and visible lamp failure alarms
True Lamp Current closed loop current control
Annual lamp change reminder timer
Lamp life remaining feature
1” MNPT fittings
No tools required for regular servicing
Easy-service lamp connector
Optional solenoid valve
Optional UV monitor system
EPA Est 089330-CAN-001
Model Number - UVD800, 400224

Made in Canada

Click Here to dowload manufacturer spec sheet

Product Category Filters Product Lines Filtered by Category UV Dynamics Product Category Filters

UV Dynamics offers Ultraviolet (UV) water disinfection systems with their own in-house UV power source design capabilities that gives this line of UV purification products an un-paralleled advantage.

The UV Dynamics disinfection chambers have been designed using specialized CAD tools that predict their performance for a variety of applications and requirements. The performance of all UV protection chambers have been third party validated using the industry standardized testing protocols.

[+] [–] More About UV Dynamics Lamps

The Water Guy, established in 1989 is a full service company that includes its own warehouse and retail store. (Yes, when your order with us you are ordering direct, not from a freight forwarding service that takes 3 weeks to get you what you need.) We can get it to you within days. :)

Our warehouse carries many hundreds of items that are not yet on our website. If you are looking for a UVDynamics lamp, sleeve, chamber, related part or accessory that is not found on this page, then please contact us by email or call our office (1-866-489-4004) to speak to a experienced "in the field" water technician that can assist you with your specialty order and unique concerns.

NOTE: UVDynamics systems, lamps, sleeves, and parts are in-stock items here at The Water Guy.

Get UV Dynamics lamps, sleeves, parts and accessories shipped directly from our Canadian warehouse to your door. Our Water Tech’s can assist you with your water purification concerns.
