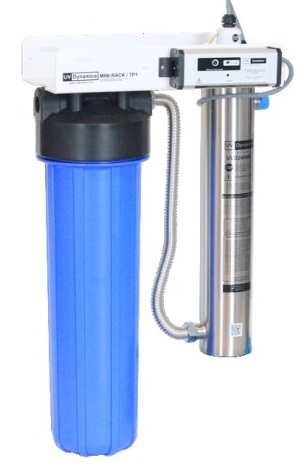

UVDynamics Mini Rack 10 gpm at 30mj & 8 gpm at 40mj with a single 20" BB Filter Model # MR320E-TP1/200

UVDynamics Mini Rack 10 gpm at 30mj or 8 gpm at 40mj with a single 20" BB Filter Housing

Features:

• Water Purification from 8 to 10 gallons per minute at 40mj & 30mJ dosage settings
• Get Potable Water & high purity water point of use applications
• Passivated and polished 304 Stainless Steel Chamber
• 3/4" in and out connections/ports
• Audio / visual lamp timer included on UV system
• Stainless Steel interconnect plumbing
• Reversible Rack Design
• UV bulb life of approximately 9,000 hours (1 year)
• Annual UV lamp replacement reminder feature
• Domed quartz sleeve to simplify servicing
• No tools required for regular servicing
• Easy-service lamp connector
• *free shipping on this

Additional Specifications:

• UVD320E (8 to 10 gallons per minute at 40 & 30mJ) UV System
• 1 x 20" big blue filter housing
• Wall Rack - 10 gauge steel with white powder coat finish
• Connections in-3/4" FIPT, out-3/4" MIPT
• 120v ac
• Completely pre-assembled.
• View the manufacturer's spec sheet here
• Model # MR320E-TP1/200

*order filters separately, we can help choose the right filter for you!

Replacement Parts:

Filters - 20" BB (20" x 4.5")(at least a 5 micron rated filter is recommended, we can help you choose the filter that best suits your water)
Lamp/Bulb - Part # 400152
Quartz Sleeve - Part # 400151
Ballast Model MF-SLE120 - Part # 400235
O-Ring Set A - Part # 400202
Spring - Part # 400111
