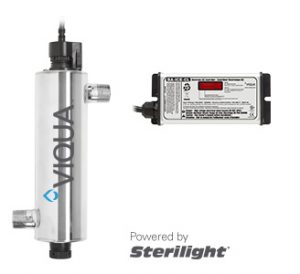

Viqua 5gpm Compact UV System Model # VH150

Sterilight/Viqua 5gpm Compact Whole Home UV Water Disinfection System

This system ships freight free

The VH150 system is a reliable, economical and chemical-free way to safeguard drinking water in any residential application, with flow rates up to 5 gpm (19 lpm). The New VH150 water system has been designed and tested to ensure quality drinking water is at everyone’s finger tips. Powerful and compact UV disinfection system designed for the cottage, cabin or small home.

Benefits:

• Space Efficient: High UV output lamp technology allows for a smaller footprint while providing the same UV performance as a longer chamber.
• Ease of Maintenance: Audible lamp replacement reminder and countdown timer with digital display. A controller will also go into alarm if the lamp fails.
• Reliable: The constant current feature ensures stable UV lamp output, regardless of power fluctuations.
• High-performance UV lamp, rigorously tested to provide a consistent output over the entire lamp life (9000 hours).
• Application: Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications.

Note: The VH150 replaces the Sterilight S5Q-PA system.

Optional Flow Control Valve available at Pull Down Menu

SSX5.00 - 5 GPM @30mJ/cm²

SSX3.50 - 3.5 GPM @40mJ/cm²

A 30 mJ/cm² is the dosage typically produced by a system when designed using the 1966 US Department of Health Policy Statement.

A 40 mJ/cm2 dosage is required by NSF/ANSI Standard 55

What's in the box?

• Stainless Steel Chamber
• UV Lamp
• Quartz Sleeve - preinstalled
• ICE Ballast with lamp plug
• Power Cord
• Mounting Clips for Chamber
• Mounting Screws
• Manual & Warranty Card

Manufactured by Sterilight/Viqua

More information on this product line is aviable here

Click here to download manufacture spec sheet
