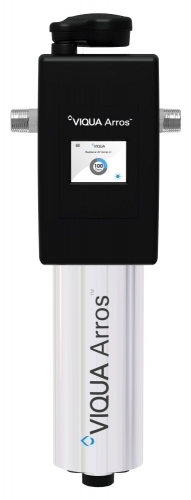

Viqua Arros 22gpm UV System

The VIQUA Arros 22 Series is the new premium residential UV system from VIQUA

Reduced Installation Complexity

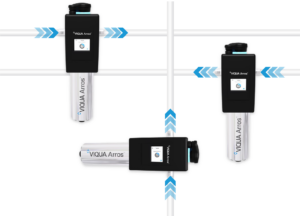

• The Tidal™ chamber aligns the inlet and outlet ports on a single plane, saving time and material.
• PolyProtect™ shield blocks UV light so the Arros UV can plumb directly to PEX and other polymer materials.
• System mounting is simplified with an elongated steel bracket.

Ease of Maintenance
The all-in-one design of the VIQUA Arros lamp unit is easier to handle.
Threaded plug for quick, clean draining.
Easy-to-navigate LCD touchscreen to identify replacement part and dealer contact information.

Optimized Treatment Performance
Equipped with Stream™ technology which allows for more accurate in-lamp usage measurement.
Space Efficient
The improved dose efficiency results in a more compact UV chamber and lamp.

Application
Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications.

The VIQUA Arros has been validated through microbial testing. Through this testing, performance data has been generated for UV dose delivery to inactivate Cryptosporidium, Giardia, Escherichia coli (E. coli), and fecal coliform.

Features & Specs
Connection Size     3/4″ MNPT
Dimensions     22.5” x 4.0” (57.2 cm x 10.16 cm)
Flow Rate     30mJ/cm2: 22 gpm (83.3 lpm) 5m³/hr
Power Consumption     60 W
Ship Wt. (lbs)     18 lbs (8.2 kg)
Part Number: ARROS15
Ideal For: Bacteria
Flow Rate: 22 gpm (34.1 lpm) 2.0 m³/hr

Click here for the Spec Sheet

Click here for the Full Installation & Maintenance Manual

Replacement Lamp unit for Arros 22
Part Number: VA022LU

*Also available in 9 GPM, and 15 GPM Arros Series UV Systems
