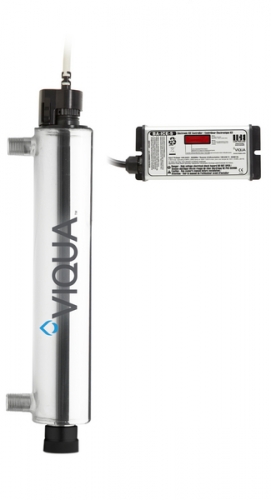

Viqua Sterilight 3gpm UV System Model # S2Q-PA

Sterilight/Viqua 2gpm to 3gpm Compact Whole Home UV Water Disinfection System

This system now ships freight free

The 115v S2Q-PA system is a reliable, economical and chemical-free way to safeguard drinking water in any residential application, with flow rates up to 3 gpm (11 lpm). The S2Q-PA water system has been designed and tested to ensure quality drinking water is at everyone’s finger tips. Powerful and compact UV disinfection system designed for point of use applications, such as a kitchen tap, ice machine, cooler, cabin...

Benefits:

• Space Efficient: High UV output lamp technology allows for a smaller footprint while providing the same UV performance as a longer chamber.
• Ease of Maintenance: Audible lamp replacement reminder and countdown timer with digital display. A controller will also go into alarm if the lamp fails.
• Reliable: The constant current feature ensures stable UV lamp output, regardless of power fluctuations.
• High-performance UV lamp, rigorously tested to provide a consistent output over the entire lamp life (9000 hours).
• Application: Perfect for a wide range of point of use applications, water coolers, ice machines, cabins

Optional Flow Control Valve available at Pull Down Menu

SSX3.00 - 3 GPM @30mJ/cm²

SSX2.00 - 2 GPM @40mJ/cm²

A 30 mJ/cm² is the dosage typically produced by a system when designed using the 1966 US Department of Health Policy Statement.

A 40 mJ/cm2 dosage is required by NSF/ANSI Standard 55

What's in the box?

• Stainless Steel Chamber
• UV Lamp
• Quartz Sleeve - preinstalled
• Controler Ballast with lamp plug
• Power Cord NA Grounded Plug 115volt ac
• Mounting Clips for Chamber
• Mounting Screws
• Manual & Warranty Card

Manufactured by Sterilight/Viqua

The Full Manual is available here
