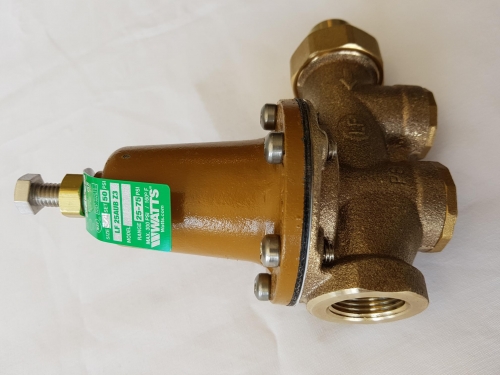

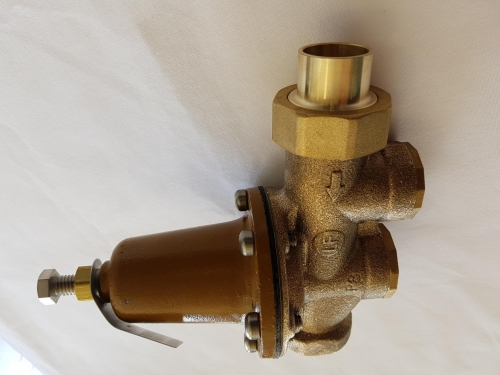

Watts's 3/4" Lead Free Brass Water Pressure Reducing Valve Part # 3/4-LF25AUB-S-Z3

Watts's 3/4" Lead Free Brass Water Pressure Reducing Valve

Series LF25AUB-Z3 Lead Free* Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure to a predetermined level, thereby protecting downstream plumbing system components and reducing water consumption. Designed for easy accessibility and serviceability without removing the valve from the line. For versatility, a variety of end connections are available: threaded, solder, PEX, quick-connect, and CPVC with union and double union. Standard pressure setting is 50psi with an adjustable range of 25 - 75psi (172 - 517 kPa.

Features

• Sealed spring cage for accessible outdoor or pit applications
• For water supply pressures up to 300psi
• Integral stainless steel strainer and bypass feature that controls thermal expansion pressure
• Designed for easy in-line servicing; has replaceable seat module
• 3/4" FNPT threaded on one end, and 3/4 sweat union conenction on the other.
• 3/4 Solder Union x FNPT Pressure Reducing Valve (Lead Free)
• Copper Silicon Alloy 25 - 75
• Part # 3/4-LF25AUB-S-Z3
