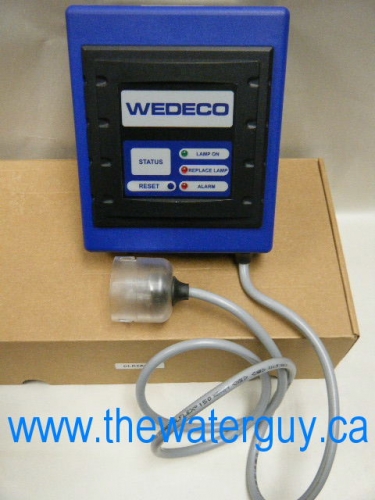

Wedeco UV Control Box DLR-AP2 89312-S

Wedeco Original Replacement Control Box for DLR Series UV Systems Model AP2 Part# 89312-S

** this item has long been out of production, we can help you find a replacement by contacting our office with your existing model number, desired flow rate and other features such as solenoid valve and sensors...

All Wedeco (Ideal Horizons) DLR Series control boxes provide a positive indication that the unit is powered and operating normally and also can indicate audible and visual alarms in the case of the lamp or other system failure. In addition, AP models provide the added feature of automatic lamp replacement notification so you know when to change the UV lamp. This ensures that the system will always operate as intended, and prevents possible under-dosing in the event the lamp is not changed on time. A further added feature is the ability to add an Automatic Solenoid Valve to your system, which turns off the water in the event of a lamp or other system failure, in addition to the visual and audible alarms.

Model – DLR-AP2

Power - 120V/60Hz

Part # - 89012-S (note some listings and older manuals list the part as 89312)

Shipping Size – 36cm L x 20cm W x 10cm H / 14” x 8” x 4”

Shipping Weight – 1.34 kg / 2.9lbs

Notes:

If you are looking to upgrade your A2 system to and AP2, this is the control box to order.

If you would like to add a Solenoid Valve for this model they can be ordered separately and come in ½ ” to 1 ½” Female NPT (normal pipe thread) connections.

Part# 89331 - ½” FNPT, Normally Closed Solenoid Valve

Part# 89332 – ¾” FNPT, Normally Closed Solenoid Valve

Part# 89333 - 1” FNPT, Normally Closed Solenoid Valve

Part# 89334 - 1½” FNPT, Normally Closed Solenoid Valve
