Well-X-Trol In-line 2 Gal Pressure Tank Amtrol Model # WX-101

Well-X-Trol In-line 2 Gal Pressure Tank

This  tradition  of  innovation  continued  with  Amtrol’s  Next   Generation   Well-X-Trol,   which   utilized   high   strength steel to deliver 150 psig working pressure -20% higher than competitve well tanks.  Backed by an industry leading 7 year warranty.Now  Well-X-Trol  is  combining  its  patent-pending  Turbulator™  with  an  antimicrobial  liner  to  deliver  Clean Water Technology™ in every tank.  Well-X-Trol - the world’s most trusted brand of well tanks;  setting  the  standard  for  quality,  reliability  and performance.

Click Here for the Home Owners Brochure

Tank Volume - 2 US Gallons
Precharged - 18psi
Connection Size - 3/4" MNPT
Max Pressure - 150psi
Height - 13"
Diameter - 8"
Weight - 5 lbs
Warranty - 7 Year Limited
Max Temp - 200°F
Coating - Blue Enamel
Shell Material - Steel
Diaphragm Material - Heavy Duty Butyl
Liner Material - Virgin Polypropylene

Amtrol Model # WX-101

Made in the USA

Click Here for the Well-X-Trol Residental Series Brochure

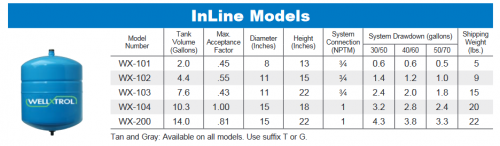

Click Here for the Well-XTrol Quick Pressure Tank Sizing Chart
