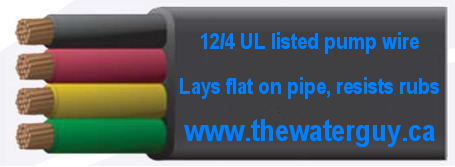

Wire 12/4 Flat Submersible Pump Wire THW-Heavy Duty Cable UL CSA

12/4 Flat Double Jacket Submersible Pump Wire Heavy Duty Cable

Now there is a CSA UL/C approved flat jacket, stranded submersible pump wire available.  The extra heavy duty covering combined with the lay-flat design makes this wire super resistant to rubs and abrasions, plus taping & tying has never been faster and easier.

Sold in increments of 1ft  / 30.5cm or save by the 1000 ft roll...

Our techs always take an extra 10% in lenght as a rule.  *Be sure to buy the right length for the job as we do not accept returns on cut wire

Application:

For use within the well casing to supply power to the submersible pump. Designed for use where extra protection is needed and flexibility during installation and operation are required

Description:

UL listed Type THW heavy duty flat submersible pump cable is a multi-purpose cable with parallel, individually insulated, color coded conductors, green ground insulated conductor and an overall jacket. Construction provides flexible copper stranding insulated with Type THW (PVC) compound. A tough PVC jacket, with a non-penetrating web, is easily stripped to facilitate installation yet provide optimum flexibility, mechanical protection and crush resistance.

• UL/C listed as Type THW Submersible Pump Cable
• CSA approved
• Acid, alkali, oil and grease resistant
• Weather, ozone and sunlight resistant jacket
• Abrasion and crush resistant
• Sequential footage marks

Construction:

• Conductors: Flexible stranded soft annealed copper
• Insulation: Thermoplastic polyvinyl chloride (PVC)
• Color coding: black, red, yellow, green (ground)
• Assembly: The insulated conductors, including the grounding conductor, are configured flat and parallel without fillers
• Jacket: Black thermoplastic polyvinyl chloride (PVC) applied directly over the conductors with a non-penetrating web
• Temperature: 75° C
• Max Voltage: 600

Flat Jacketed Wire is also available in:  10/4 and 8/4 sizes

In our service centre we also carry all common sizes of standard braided wire in 3 or 4 strand configurations.
